A brief introduction to Perforated pipe
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-10-26 10:23:15 Browse:
The deep-processing products of perforated plates are diverse, among which Perforated pipe is a widely used perforated product in the chemical industry. Perforated pipe is a product in which round or square holes are punched on metal sheet, and the pipe diameter size is determined by cutting the sheet width according to the customer's required size, then welded into a spiral or straight pipe shape.

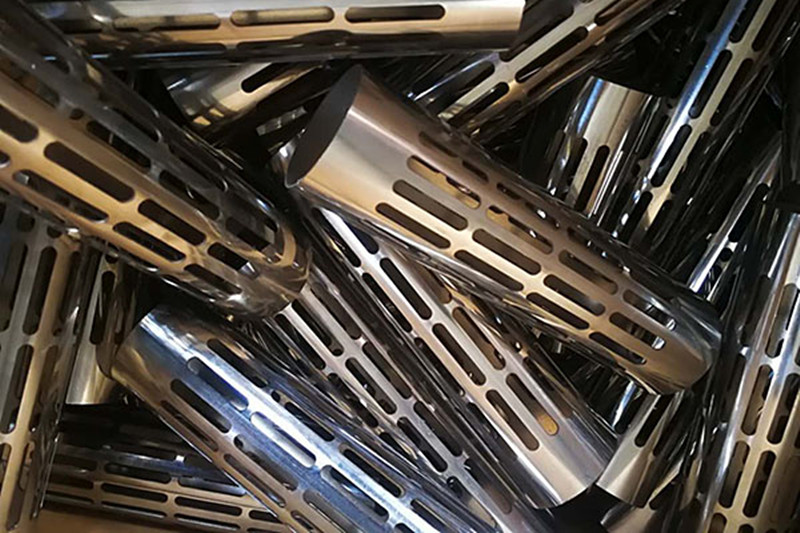

Perforated pipe
Perforated pipe is one of the deep-processing products in perforated products. What are the specific specifications and dimensions required for it?
Perforated pipe material: carbon steel plate, 201 stainless steel plate, 304 stainless steel plate, 316 stainless steel plate, 409 stainless steel plate, 2250 stainless steel plate;
Specifications: diameter range: outer diameter φ10-1000mm;
Welded pipe wall thickness: 0.4-15mm;
Welded pipe length: 10-5000mm;
Pipe wall hole shape: round hole, square hole, plum blossom hole, etc. with a variety of hole shapes;
Hole size: produced according to customer requirements.

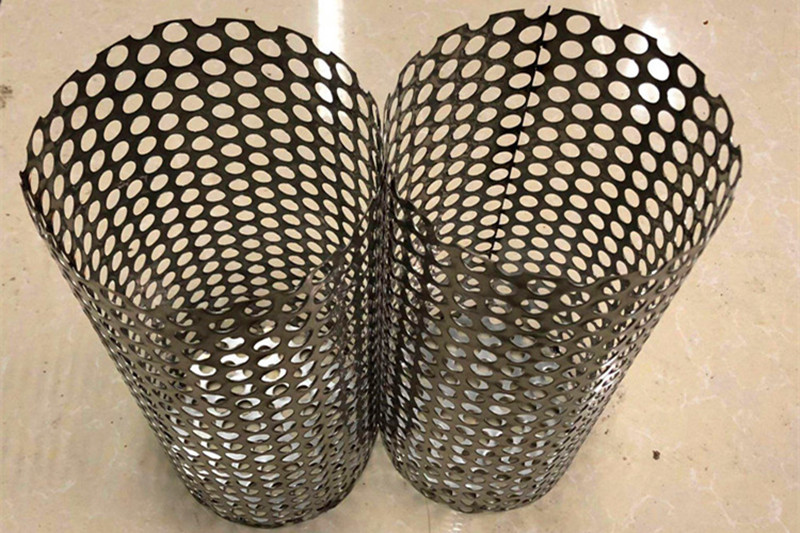

Perforated pipe
Perforated pipes features: The product has good flexibility, aging resistance, and is less prone to rust. It has a wide range of applications and a flat, smooth, and durable mesh surface. Its filtration performance is excellent.
Filtration principle: The filtration of particles is achieved by the fine and long curved pores in the filter medium and the impact and squeezing action of the fluid. It is suitable for occasions where the size of the suspended particles is very small and the content is very low. The solid content is generally not higher than 0.01%. It can remove solid particles ranging from 0.02 to 100 microns. It is mainly used to remove fine suspended particles and colloidal substances that cannot be removed by ordinary sand filtration, such as the purification of drinking water.

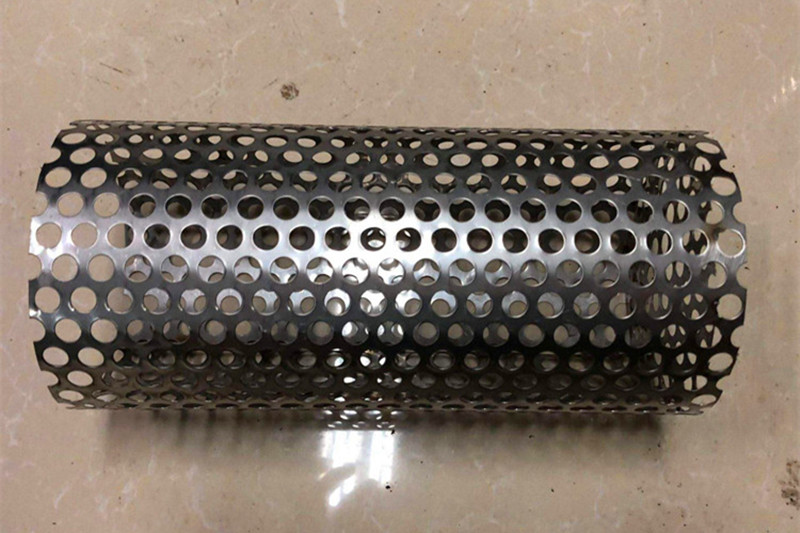

Perforated pipe
Perforated pipe is commonly used in the petroleum, chemical, food, pharmaceutical, household kitchen, and other applications such as filters, filter plates, filter tubes, and filters.
