perforated panels Specifications and dimensions
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-07-09 07:42:53 Browse:
Perforated panels is a kind of mesh product which uses good sheet metal as raw material and is continuously blanking according to customized die on CNC punching machine. It can be customized into different specifications and sizes according to sheet material, sheet thickness, sheet size, mesh pattern and mesh aperture.

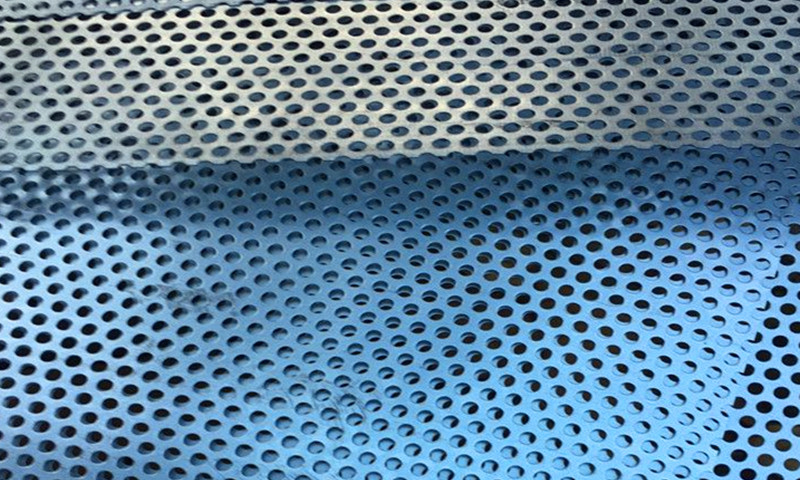

perforated panels
Perforated panels Plate material:
Perforated panels can choose iron plate, aluminum plate, stainless steel plate and other different materials of metal plate as raw materials, iron plate can choose cold rolled plate, galvanized plate, hot rolled plate, manganese steel plate; Aluminum plate can choose 1 series aluminum plate such as 1050, 1060, 1100, 3 series aluminum plate such as 3003, 3004, 5 series aluminum plate such as 5005, 5052, 5083 and so on; Stainless steel plates such as 201, 304, 316, 316L, 430, etc.

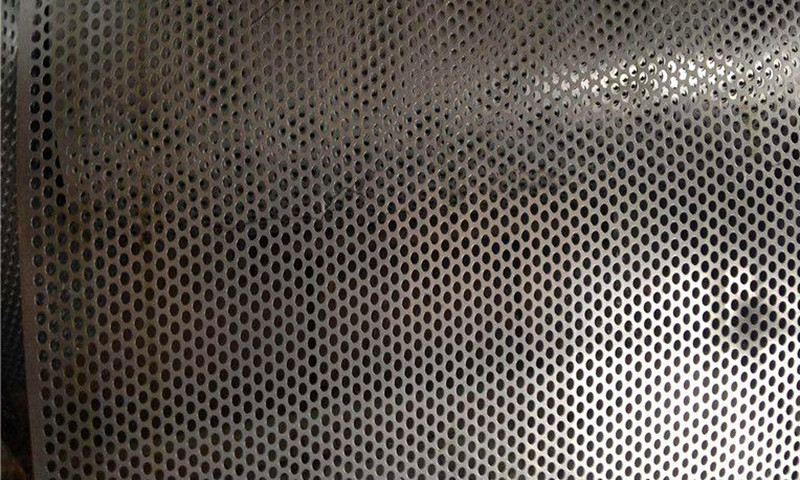

perforated panels
Perforated panels Sheet thickness:
Perforated panels Sheet thickness from 0.1mm-30mm can be processed customized, conventional stock thickness from 0.3mm-2mm are available.
Perforated panels Material size:
The size of the plate punching mesh can be customized according to the requirements, under normal circumstances, the width does not exceed 1.5 meters, the length does not exceed 4 meters can be customized, the size of the spot plate is 1 meter *2 meters, 1.22 meters *2.44 meters (stainless steel), 1.25 meters *2.5 meters, etc., the size of the spot plate is 1 meter *20 meters, 1.2 meters *20 meters, etc.

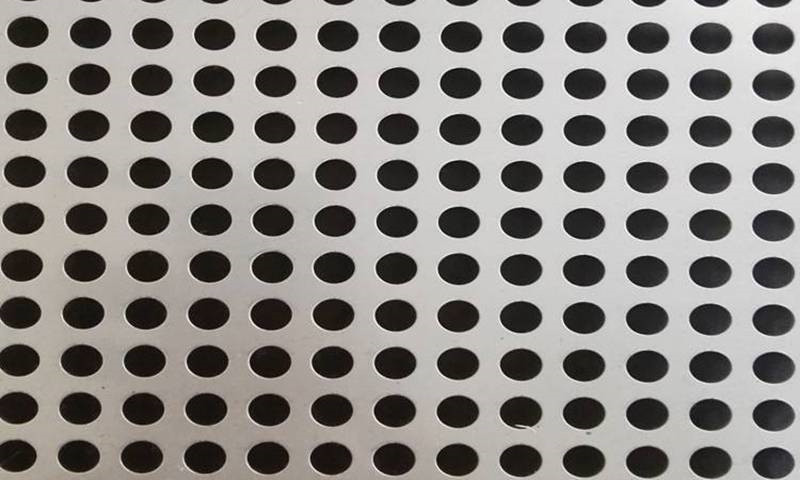

perforated panels
Perforated panels Mesh pass type:
Perforated panels can be processed according to requirements round hole, oval hole, round hole, square hole, square hole, triangle hole, five-pointed star hole, hexagonal hole, figure eight hole, cross hole, club hole, diamond hole, fish scale hole, louver hole, round drum hole, crocodile mouth hole and other holes.

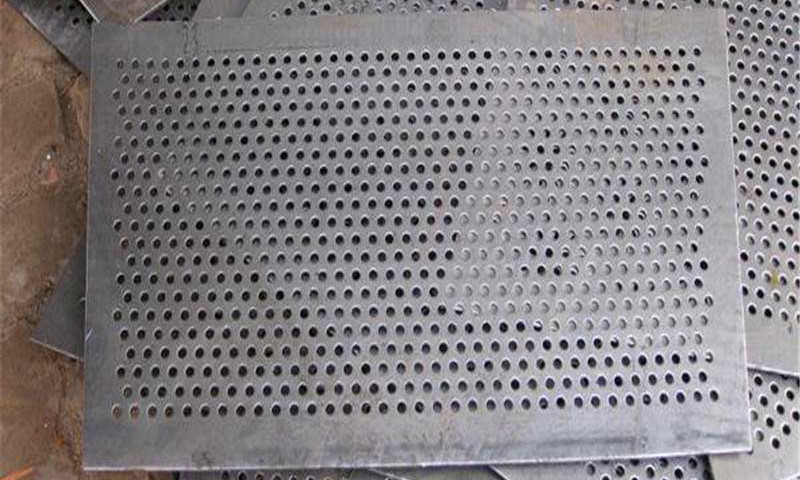

perforated panels
Perforated panels Mesh size:
Perforated panels The mesh diameter can be customized from 0.2mm to 200mm, but according to the principle of the smallest hole, the mesh diameter shall not be less than the thickness of the plate.
The above is a brief introduction to perforated panels specifications and sizes. If you need to purchase perforated panels, you can tell us the specifications and models you need, we will customize them for you according to your requirements.

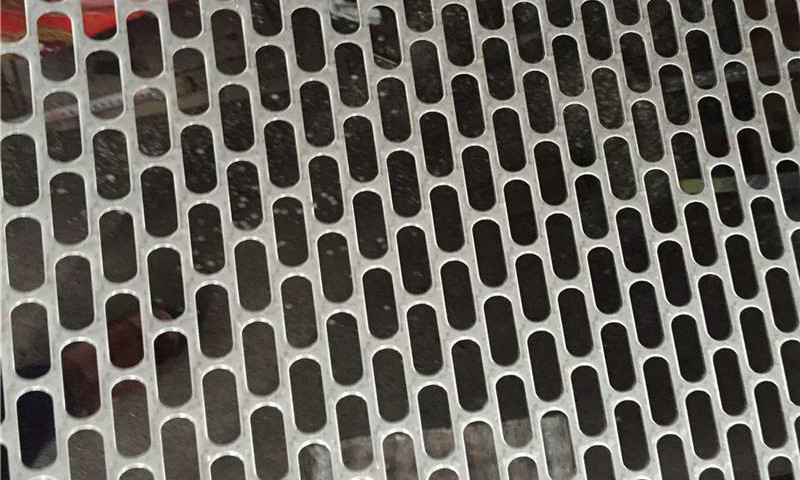

perforated panels
