What are the types of safety grating in the perforated plate series?
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-11-19 09:35:21 Browse:
Perforated plates are manufactured by continuously punching metal plates using a precision CNC punching machine according to specific molds. The available hole types include round holes, oval holes, elongated round holes, square holes, rectangular holes, triangular holes, pentagon holes, hexagonal holes, octagonal holes, cross holes, plum blossom holes, diamond holes, fish scale holes, louver holes, round bulge holes, and crocodile mouth holes, among others. These perforated plates are widely used in various industries.
One type of perforated plate product is Safety grating, which is commonly used in places prone to moisture and slipping, such as platforms and stair treads in water treatment plants and sewage treatment plants. The primary function of Safety grating is to provide excellent anti-slip properties. It is cost-effective, has a long service life, and is highly favored by customers.
There are several types of perforated plate products used as Safety grating. Below, Anping Senchi Perforated Plate Factory provides a detailed introduction to the series of Safety grating products for your reference.

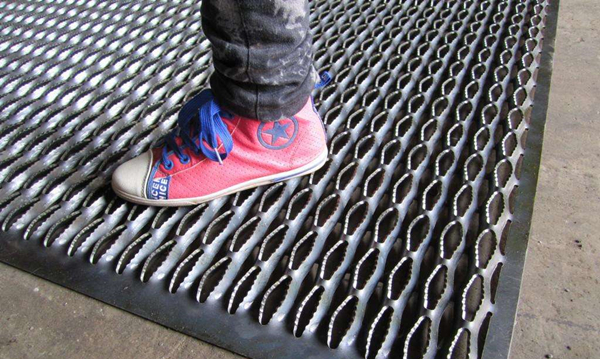

Single Flip Crocodile Mouth Safety Grating
Single Flip Crocodile Mouth Safety Grating
The single flip crocodile mouth safety grating refers to a hole pattern where the crocodile mouth holes only flip upwards, without flipping downwards.
Material thickness: Metal plates ranging from 1mm to 4mm can be used for production.
Available materials: Galvanized plate, cold-rolled plate, hot-rolled plate, stainless steel, aluminum, and other metals.
Available sizes: Length < 3 meters, width < 1.5 meters.
Post-processing: Laser cutting, shearing, bending, etc.
Surface treatment: Spraying, fluorocarbon spraying, electrostatic powder coating, electro-polishing, anodizing, etc.

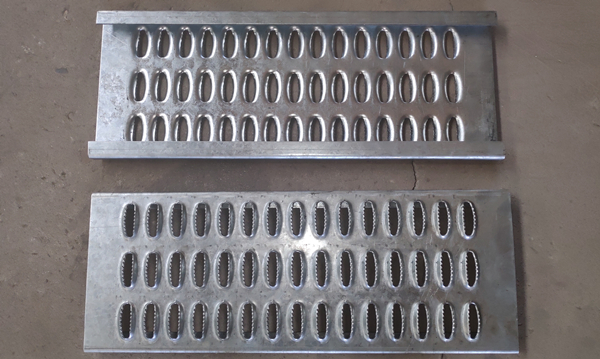

Double Flip Crocodile Mouth Safety Grating
Double Flip Crocodile Mouth Safety Grating
The double flip crocodile mouth safety grating refers to a hole pattern where one crocodile mouth hole flips upwards and the other flips downwards. Compared to the single flip type, this design provides greater load-bearing capacity under the same thickness. The downward-facing holes also allow rain, snow, dust, and debris to fall through, offering a degree of self-cleaning functionality.
Material thickness: Metal plates ranging from 1mm to 4mm can be used for production.
Available materials: Galvanized plate, cold-rolled plate, hot-rolled plate, stainless steel, aluminum, and other metals.
Available sizes: Length < 3 meters, width < 1.5 meters.
Post-processing: Laser cutting, shearing, bending, etc.
Surface treatment: Spraying, fluorocarbon spraying, electrostatic powder coating, electro-polishing, anodizing, etc.

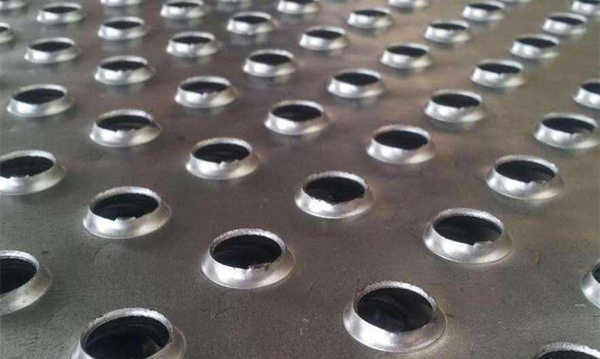

Round Bulge Safety Grating
Round Bulge Safety Grating
The round bulge safety grating is another type of safety grating with round-shaped bulges on its surface to increase friction and prevent slipping.
Material thickness: Metal plates ranging from 1mm to 4mm can be used for production.
Available materials: Galvanized plate, cold-rolled plate, hot-rolled plate, stainless steel, aluminum, and other metals.
Available sizes: Length < 3 meters, width < 1.5 meters.
Post-processing: Laser cutting, shearing, bending, etc.
Surface treatment: Spraying, fluorocarbon spraying, electrostatic powder coating, electro-polishing, anodizing, etc.
