Introduction to Roll plate perforated sheet
Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-10-22 08:07:59 Browse:
Roll plate perforated sheet is a mesh product produced by continuous punching on metal sheet according to specific hole patterns and hole spacing using a numerical control punching machine.

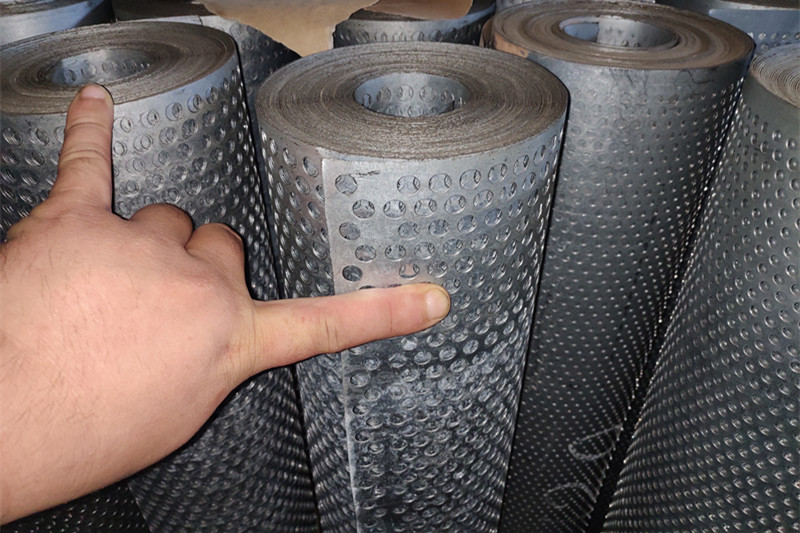

Roll plate perforated sheet
Roll plate perforated sheet Specifications
Roll plate perforated sheet Material: galvanized steel plate, stainless steel plate, cold and hot rolled plate, copper plate, nickel plate, aluminum alloy plate, etc.;
Steel plate thickness: 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 0.9mm, 1.0mm, etc., with a variety of thicknesses available;
Manufacturers can process hole patterns: the most commonly used hole pattern shapes are round holes and square holes. Other hole patterns such as long rectangular holes, four-cornered holes, raised holes, five-cornered holes, oval holes, octagonal holes, round holes, fish-eye holes, combination-shaped holes, crocodile-mouth-shaped holes, irregular holes, lattice window holes, and peony flower holes can also be processed.
Roll plate perforated sheet Requirements: the hole diameter size ranges from 0.2mm to 20mm, and the hole spacing can be processed according to the user's wishes. Special hole spacing can be processed according to the drawing.
Roll plate perforated sheet features and uses
Roll plate perforated sheet has the following features and uses: it has a flat and shiny surface, is resistant to corrosion, high temperature, beautiful and durable, solid and not easily rusty, has a wide range of uses, and is often used in perforated panels for curtain walls, grille panels for loudspeakers, filters, sound-absorbing panels, decorative ceiling panels, balcony burglar-proof window pads, filters, sieve plates, insect screens, and kitchen utensils.

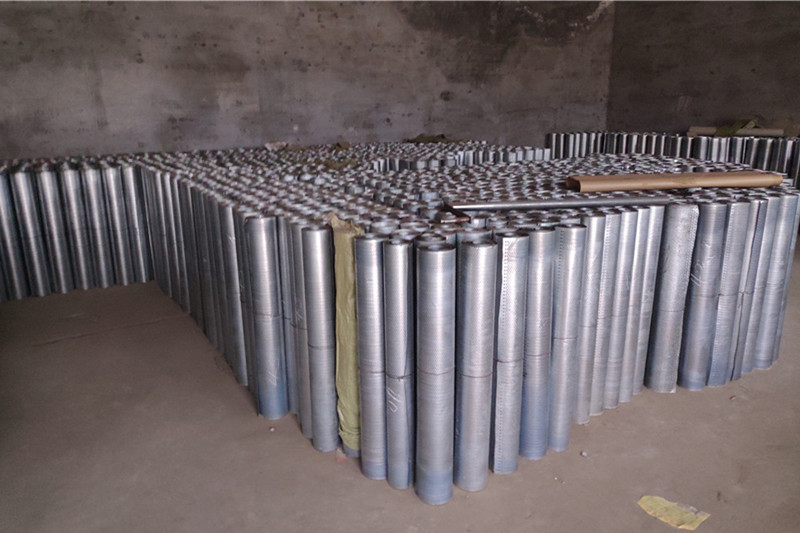

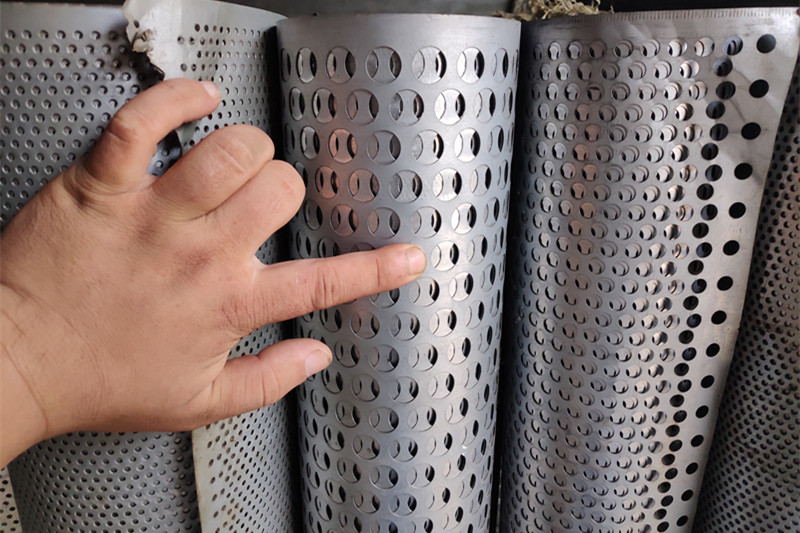

Roll plate perforated sheet
