perforated mesh sheet Product Introduction
perforated mesh sheet is another name of perforated plate, which is a mesh product made of high quality sheet metal in CNC punching machine according to customized die continuous blanking. It can be made of sheet metal of different materials such as iron plate, aluminum plate, stainless steel plate and so on. Available hole types are round hole, oval hole, rectangular hole, square hole, rectangular hole, triangular hole, five-pointed star hole, hexagonal hole, figure eight hole, cross hole, square hole, zigzag hole, zigzag hole, diamond hole, fish scale hole, nail hole, bridge hole, louver hole, round drum hole, crocodile mouth hole and other holes, aperture size and hole spacing can be customized according to user needs. In the way the mesh is arranged. You can choose different forms of arrangement, the conventional 60° Staggered, 45° Staggered, 90° In line, irregular arrangement can be customized according to user needs.
perforated mesh sheet has the characteristics of flat mesh, uniform mesh, beautiful, strong integrity, easy processing, low cost and so on.
Net surface leveling: perforated mesh sheet after continuous blanking on the CNC punching machine will have a certain degree of deformation, we will use the leveling machine for leveling treatment, after leveling treatment perforated mesh sheet will become very flat.
Uniform mesh: perforated mesh sheet is produced by CNC punching machine, which has a high advantage in precision.
Beautiful and generous: perforated mesh sheet can be customized with different pass molds, rich selection of arrangement methods, and has the characteristics of beautiful and generous in the field of decoration.
Strong integrity: perforated mesh sheet is the use of a whole sheet of steel perforated production, compared with other woven products have a strong integrity.
Easy to process: perforated mesh sheet after the completion of production can be cut, bending, laser cutting, different forms of surface treatment and other deep processing, processing form is simple.
Low cost: perforated mesh sheet has the characteristics of low cost compared with other products.

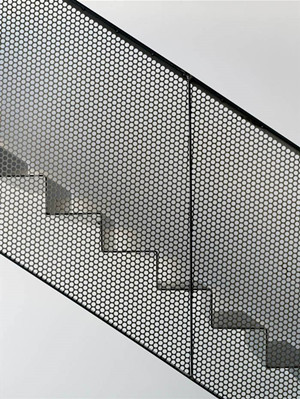

perforated mesh sheet has a wide range of applications, which are widely used in the ceiling and wall panels of buildings as sound-absorbing materials; Can be used for building stairs, balconies, environmental protection tables and chairs exquisite decorative hole plate; Can be used for mechanical equipment protective cover, gorgeous speaker net cover, grain, feed, mine grinding screen, mine screen, I screen, kitchen equipment with stainless steel fruit blue, food cover, fruit tray and other kitchenware, as well as shopping malls with shelf nets, decorative exhibition table, grain depot ventilation net, football turf seepage water filter net. Punching mesh is also widely used in the electronic industry, such as audio dust and sound insulation cover, as shown in the following figure: Product features :· Easy to process · Can be painted or polished. Easy to install · A striking appearance. Sheets of various thicknesses · A wide selection of apertures and arrangements · Good sound absorption · Lighter weight Long service life · The precise size punching mesh is also widely used in chemical machinery, pharmaceutical equipment, food and beverage machinery, cigarette machinery, harvester, dry cleaning machine, ironing table, muffling equipment, refrigeration equipment (central air conditioning) sound box, arts and crafts production, paper making, hydraulic parts, filtration equipment and other industries.

perforated mesh sheet Specification Description
perforated mesh sheet There are many specifications to choose from. Different parameters such as plate thickness, plate material, plate size, mesh size, mesh spacing, mesh pass can be combined into thousands of specifications.
Sheet thickness: perforated mesh sheet thickness selection is very rich, sheet thickness from 0.1mm-20mm can be customized, different thickness to meet different needs.
Plate material: perforated mesh sheet plate material has many choices, you can choose iron plate, aluminum plate, stainless steel plate and other different materials of metal plate processing custom.
Iron plate Q235 low carbon steel plate, Q345 manganese steel plate, cold rolled plate, hot rolled plate, galvanized plate and so on;
There are 1 series aluminum plates such as 1050, 1060, 1070, 1100, etc., 3 series aluminum plates such as 3003, 3004, etc., 5 series aluminum plates such as 5005, 5052, 5083, etc.;
Stainless steel plate has 201 material, 304 material, 316 material, 316L material, 409 material, 430 material and so on.
Sheet size: perforated mesh sheet can be customized according to the needs of different sizes of sheet size, under normal circumstances, sheet width greater than 50mm, less than 1500mm, sheet length greater than 50mm, less than 4000mm between the size of the sheet can be customized production.
perforated mesh sheet The conventional plate size is 1000mm*2000mm, 1250mm*2500mm, 1500mm*3000mm, 1 m*20 m, 1.2 m*20 m and so on.
Mesh size: perforated mesh sheet mesh size can be customized according to user needs, mesh diameter from 0.2mm to 300mm can be customized production, but it should be noted that the mesh diameter should not be lower than the thickness of the plate.
Mesh spacing: perforated mesh sheet mesh spacing can be customized according to user needs, under normal circumstances, the spacing from hole edge to hole edge shall not be lower than the thickness of the plate.
Mesh pass: There are many hole types of perforated mesh sheet. The conventional hole types include round hole, oval hole, round hole, square hole, rectangular hole, triangular hole, five-pointed star hole, hexagonal hole, figure eight hole, cross hole, square hole, herringbone hole, I-hole, diamond hole, fish scale hole, nail hole, bridge hole, louver hole, round drum hole, crocodile mouth hole and so on. Other special-shaped pass can be customized according to user needs.

perforated mesh sheet Price introduction
The price of perforated mesh sheet is calculated comprehensively according to specifications and models, the price of perforated mesh sheet is different for different specifications and models, users who want to know the price of perforated mesh sheet can send us an email, we will quote according to your specifications and models.
