Convex hole safety grating

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-05-09 10:58 Browse:

Email:342096438@qq.com
We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.

Product overview

Convex hole safety grating Production video

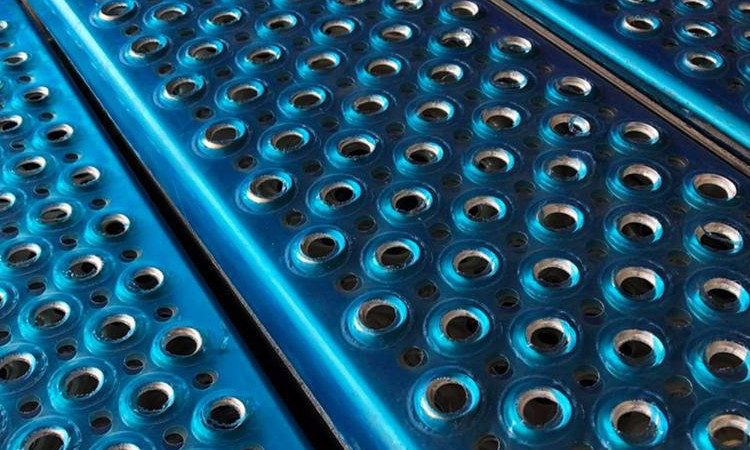

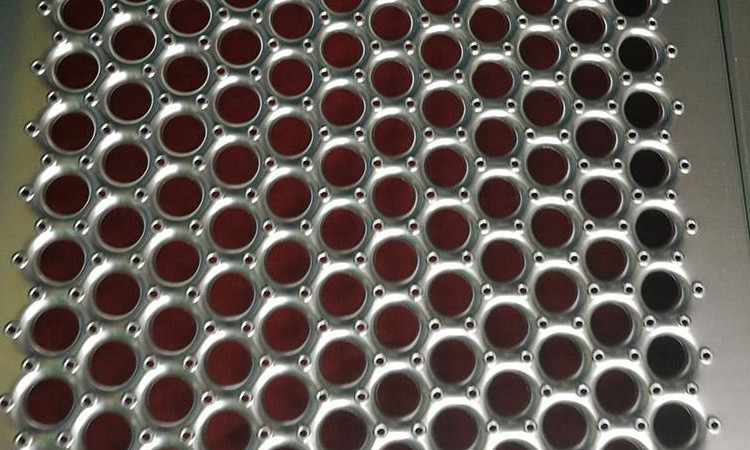

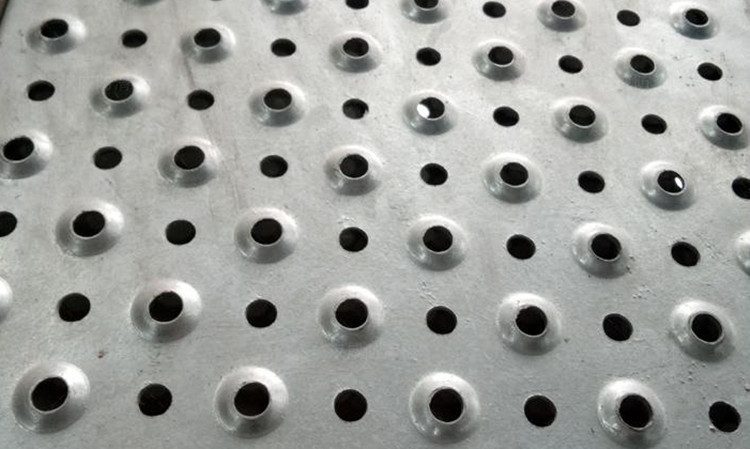

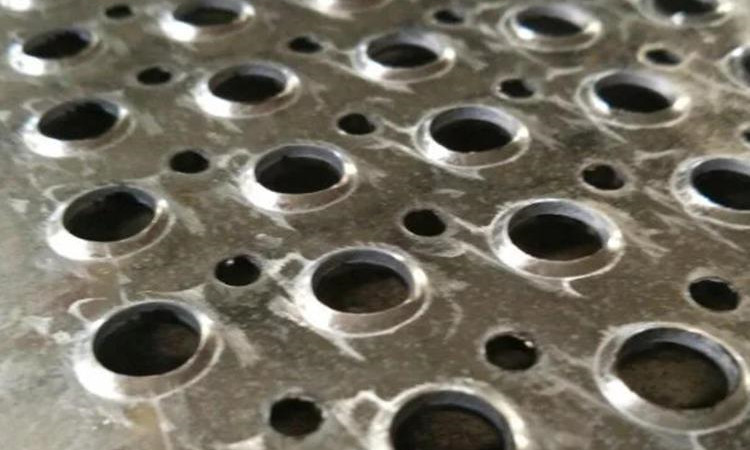

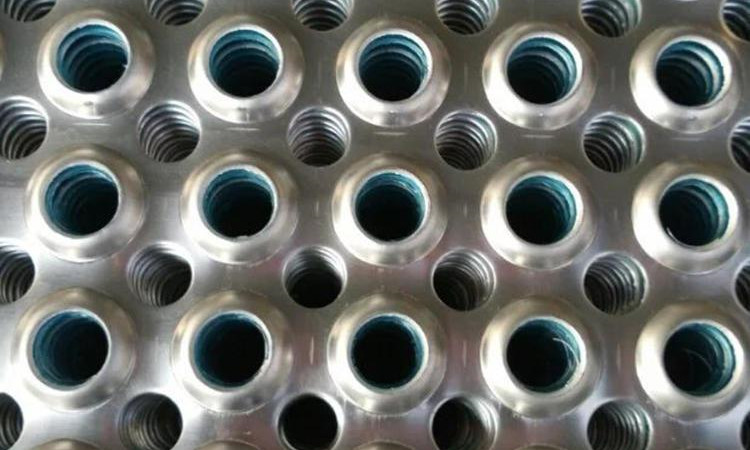

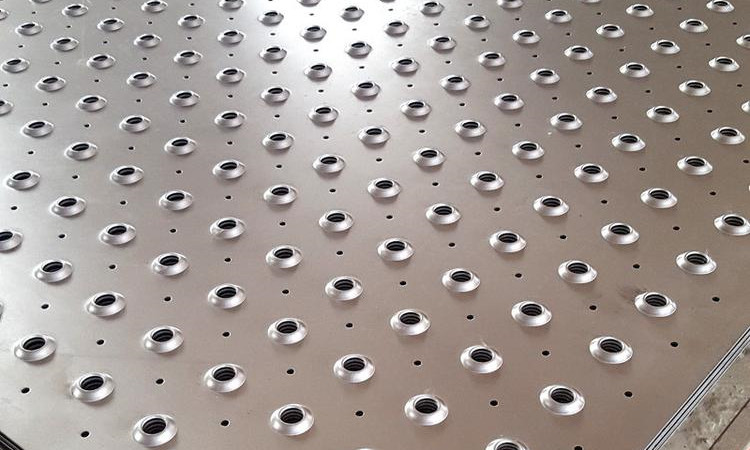

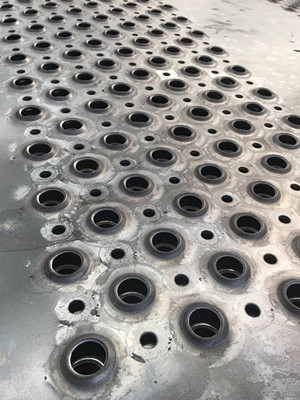

Convex hole safety grating Products

Convex hole safety grating Products

Convex hole safety grating Product Introduction
Convex hole safety grating is a kind of mesh product with anti-slip effect, which is made of high quality sheet metal in CNC punching machine according to customized die continuous blanking. It can be customized according to user needs.
Convex hole safety grating has the characteristics of beautiful appearance, low cost, good anti-slip effect, light weight, strong load-bearing force, etc. It is widely used in power plants, waterworks, sewage treatment plants, oil drilling platforms, footboards of various mechanical equipment, train pedals and so on.
Convex hole safety grating Specification Description
Convex hole safety grating specifications are generally customized according to user needs, plate material, plate size, plate thickness, aperture size, hole spacing, deep processing, etc., can be customized according to requirements.
Sheet material: Convex hole safety grating sheet material can choose iron plate, aluminum plate, stainless steel plate and other different materials of metal plate for customization, of which iron plate can choose Q235 low carbon steel plate, cold rolled plate, hot rolled plate, galvanized plate, etc., aluminum plate can choose 1 series aluminum plate such as 1050, 1060, 1070, 1100 and so on; 3 series aluminum plate such as 3003, 3004, etc.; 5 series aluminum plates such as 5005, 5052, 5083, etc. Stainless steel plate can choose 304 material, 316 material, etc.
Plate size: Convex hole safety grating size is generally customized according to user needs, the length is greater than 50mm, less than 1500mm; The width is greater than 50mm, less than 4000mm can be customized production. The conventional Convex hole safety grating size is 1000mm*2000mm, 1250mm*2500mm and so on.
Sheet thickness: The thickness of Convex hole safety grating can be customized from 1mm-4mm.
Aperture size: Convex hole safety grating aperture size can be customized according to user needs, under normal circumstances, the outer ring size from 10mm-50mm can be customized production.
Hole spacing: Convex hole safety grating hole spacing can be customized according to user needs, under normal circumstances, the outer ring to the outer ring spacing is greater than 10mm can be customized.
Deep processing: Convex hole safety grating can choose different deep processing methods according to different materials, can be bending, cutting, laser cutting, welding, spray painting, spray plastic, electrolytic polishing, anodic oxidation and other forms of deep processing.
Convex hole safety grating Price introduction
Convex hole safety grating The price is calculated comprehensively according to specifications and models, the price of Convex hole safety grating is different for different specifications and models. Users who want to know the price of Convex hole safety grating can send us an email and tell us the specifications and models you need, we will have customer service staff to quote for you.
