Perforated Plate Open Area Ratio Calculator

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2025-03-03 14:45:49 Browse:

Our Perforated Plate Opening Ratio Calculator is a professional tool specifically designed for architects, acoustic engineers, and designers. It supports calculations for various hole shapes such as circular, square, hexagonal, and more. With its user-friendly interface and precise algorithms, you can easily input parameters like hole diameter, spacing, and panel dimensions to obtain accurate results in real time.

Whether you're working on acoustic design, ventilation system planning, or decorative applications, this calculator provides quick and reliable data to optimize your designs. By calculating the opening ratio and related acoustic performance metrics, it helps you make informed decisions and improve efficiency in your projects.

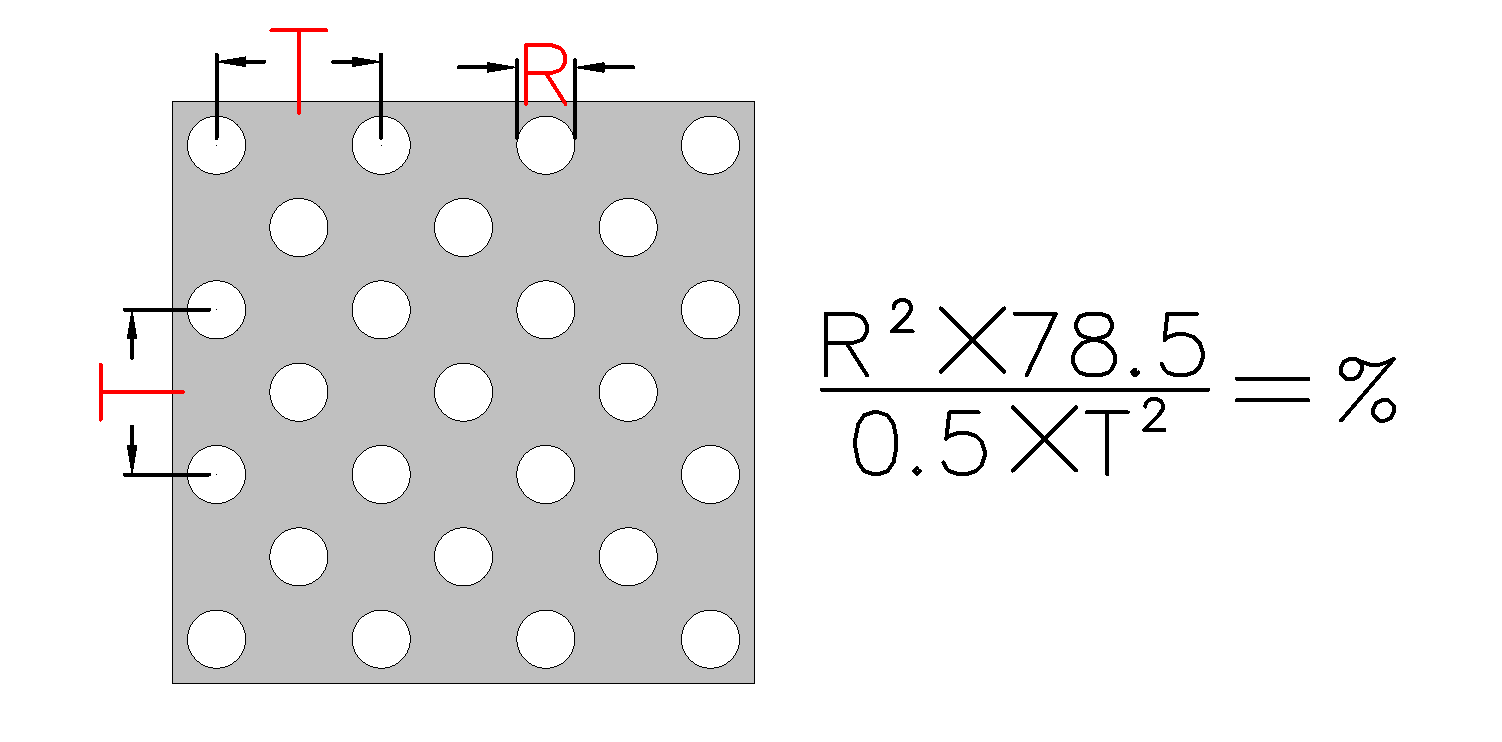

45° Staggered Round Hole Perforated Plate Open Area Ratio Calculator
45° Circle Hole
R:
T:

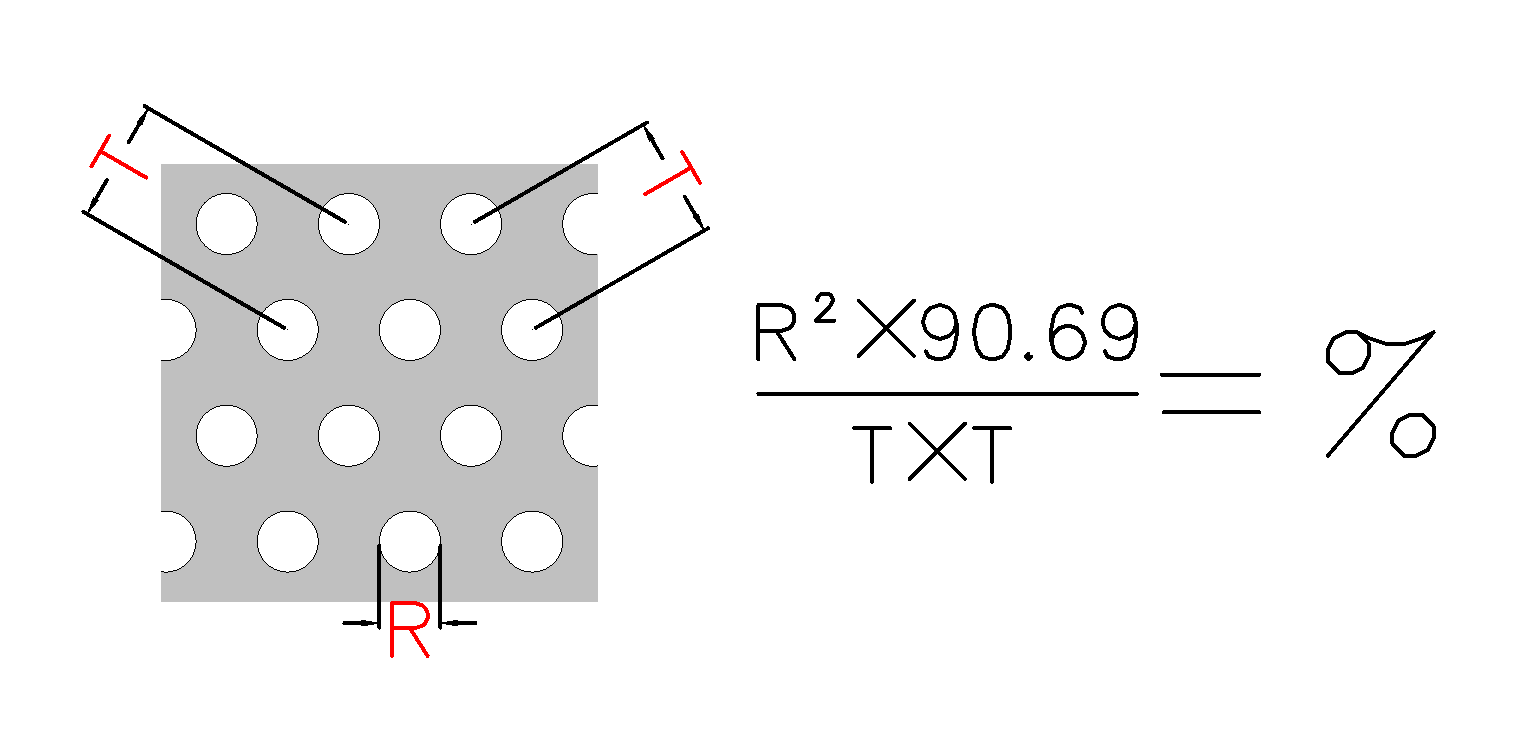

60° Staggered Round Hole Perforated Plate Open Area Ratio Calculator
60° Circle Hole
R:
T:

90° Staggered Round Hole Perforated Plate Open Area Ratio Calculator
90° Circle Hole
R:
T1:
T2:

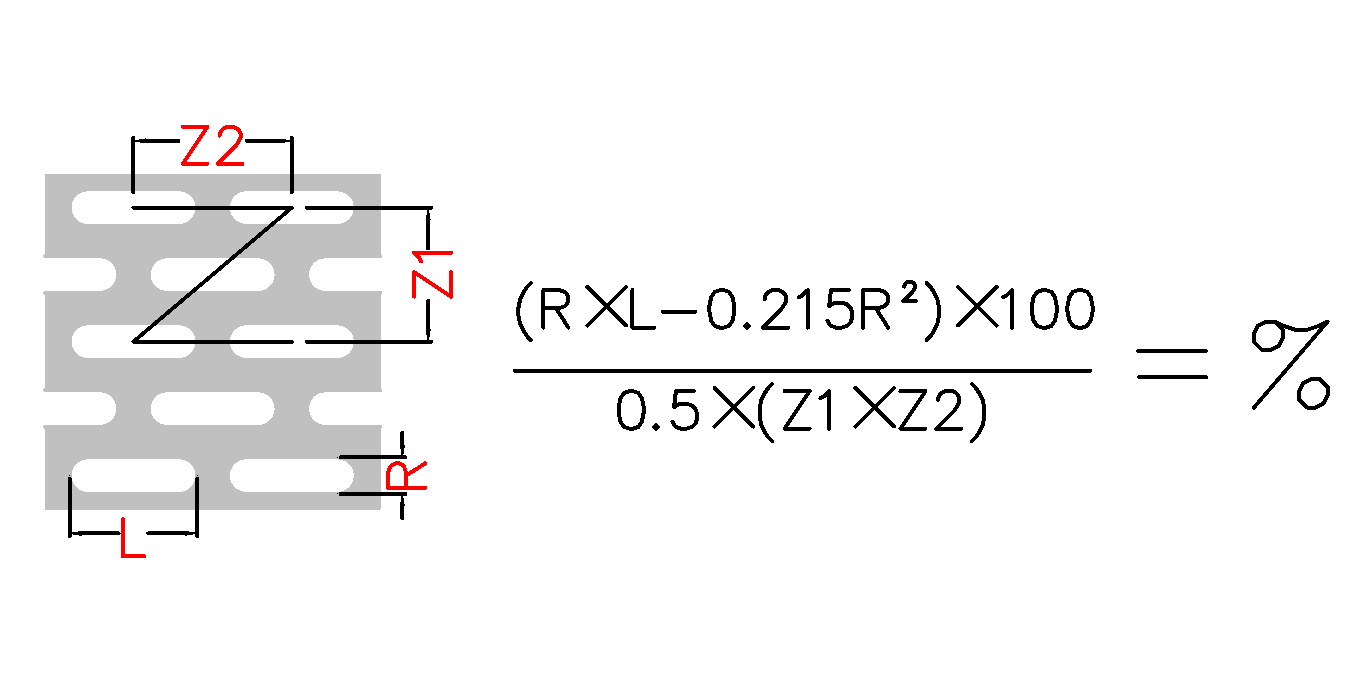

Z-Type Staggered Slot Hole Perforated Plate Open Area Ratio Calculator
Z-Type Slot Hole
R:
L:
Z1:
Z2:

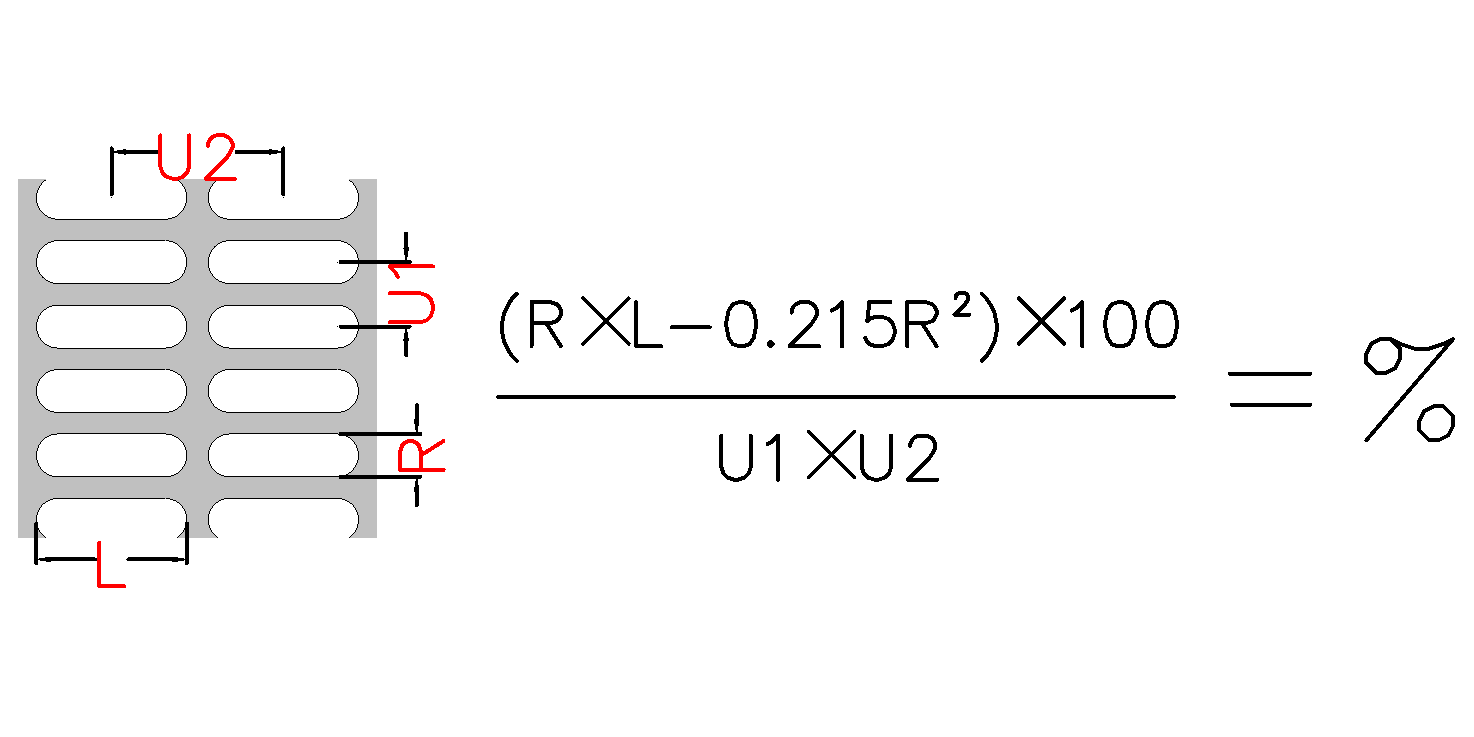

Straight Slot Hole Perforated Plate Open Area Ratio Calculator
Straight Slot Hole
R:
L:
U1:
U2:

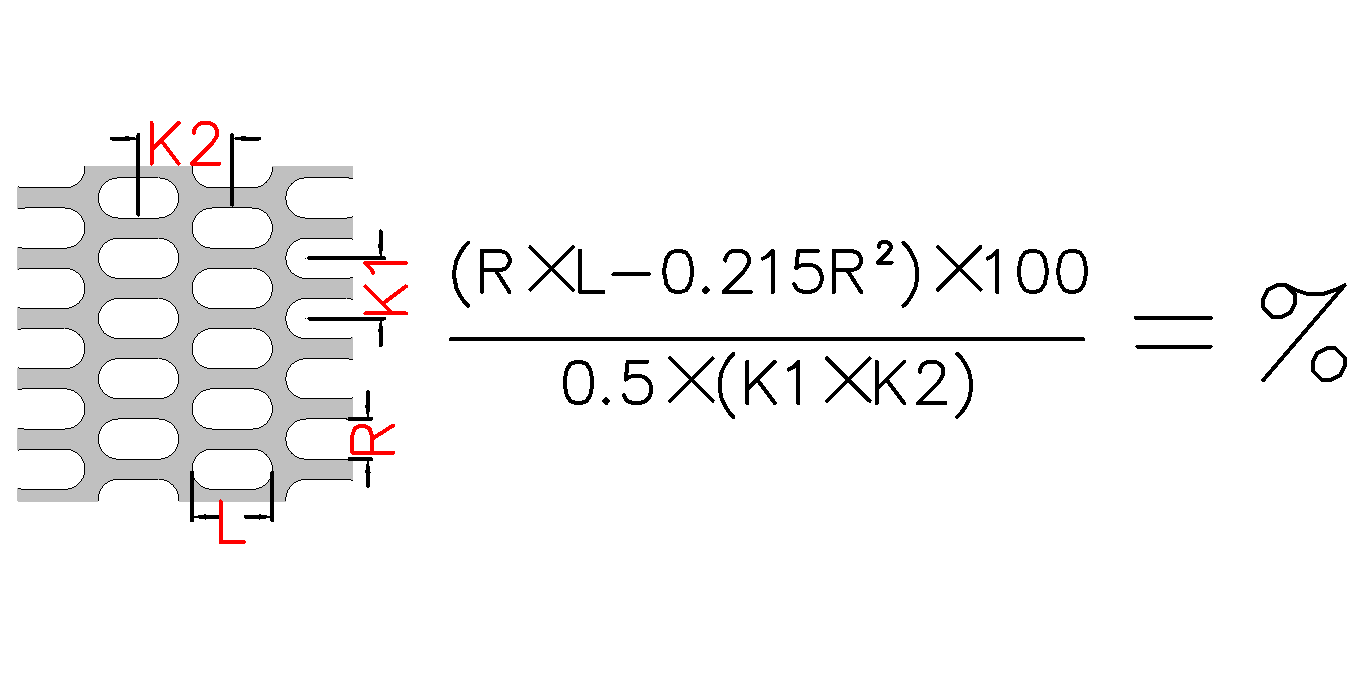

K-Type Staggered Slot Hole Perforated Plate Open Area Ratio Calculator
K-Type Slot Hole
R:
L:
K1:
K2:

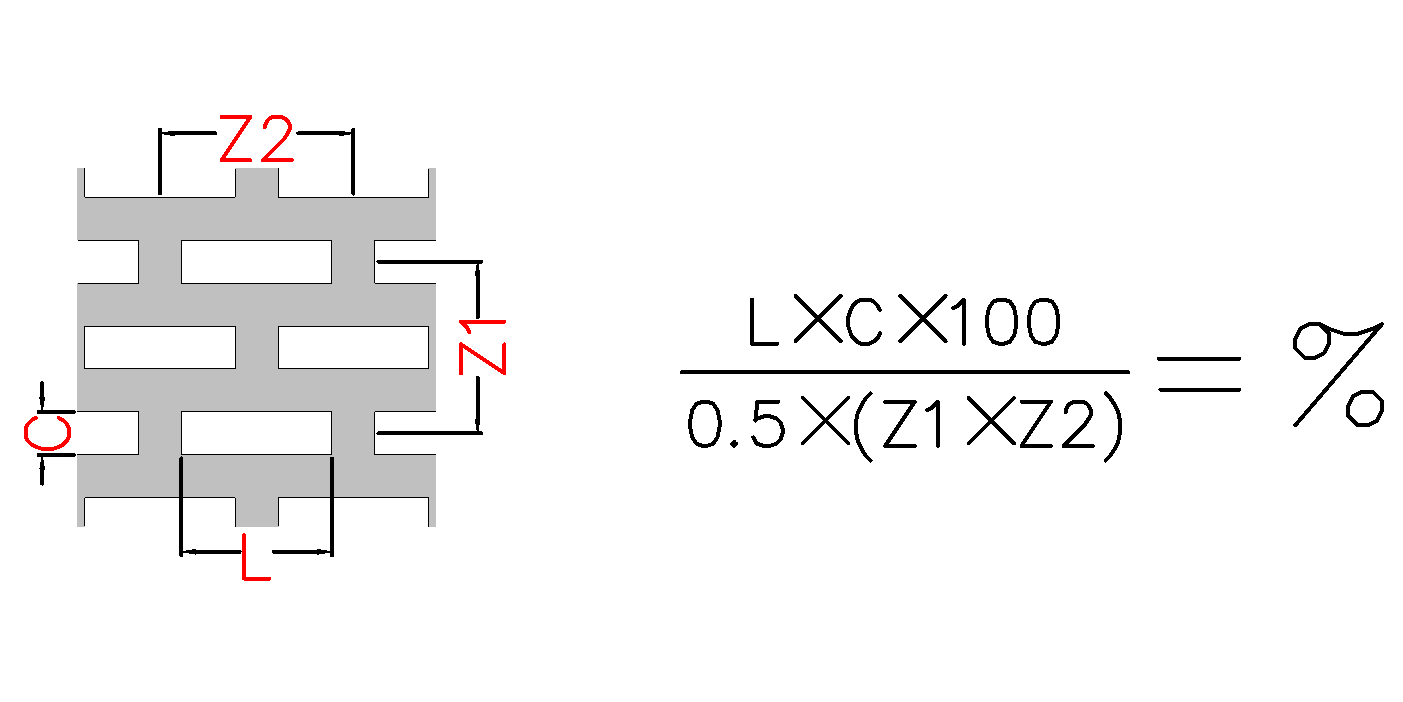

Z-Type Rectangular Hole Perforated Plate Open Area Ratio Calculator
Z-Type Rectangular Hole
L:
C:
Z1:
Z2:

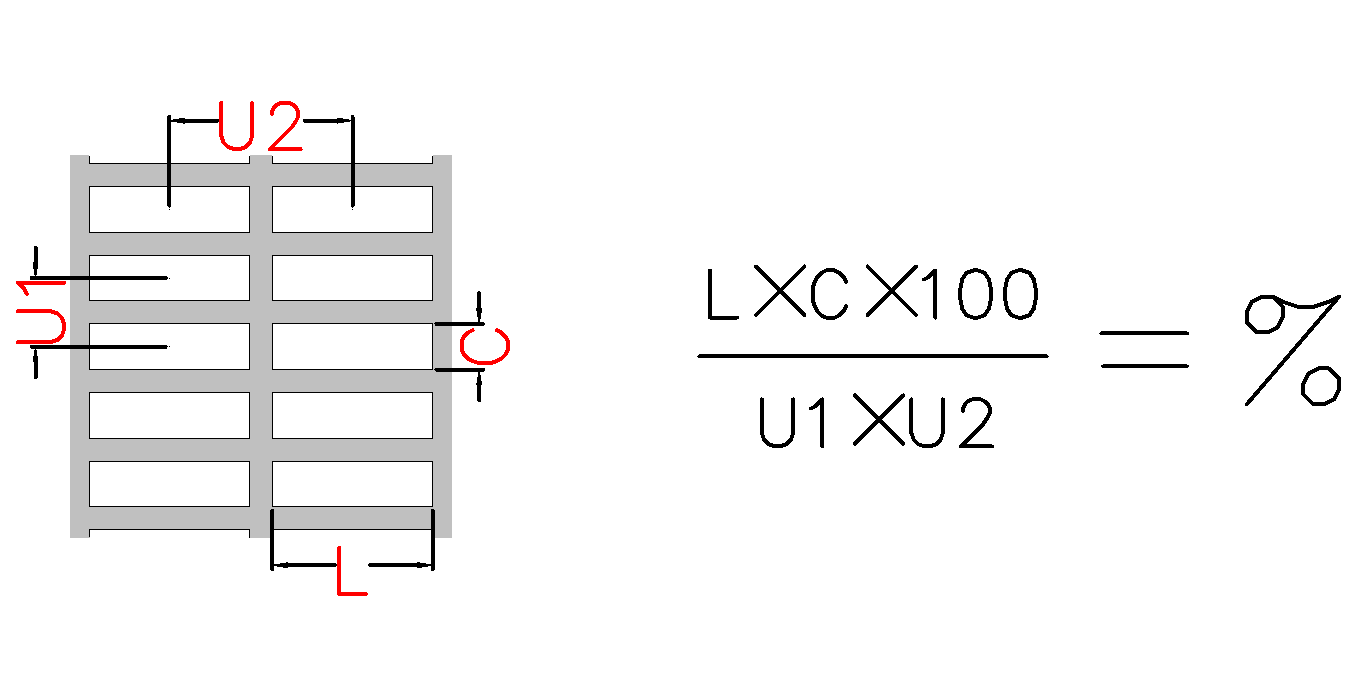

Straight Rectangular Hole Perforated Plate Open Area Ratio Calculator
Straight Rectangular Hole
L:
C:
U1:
U2:

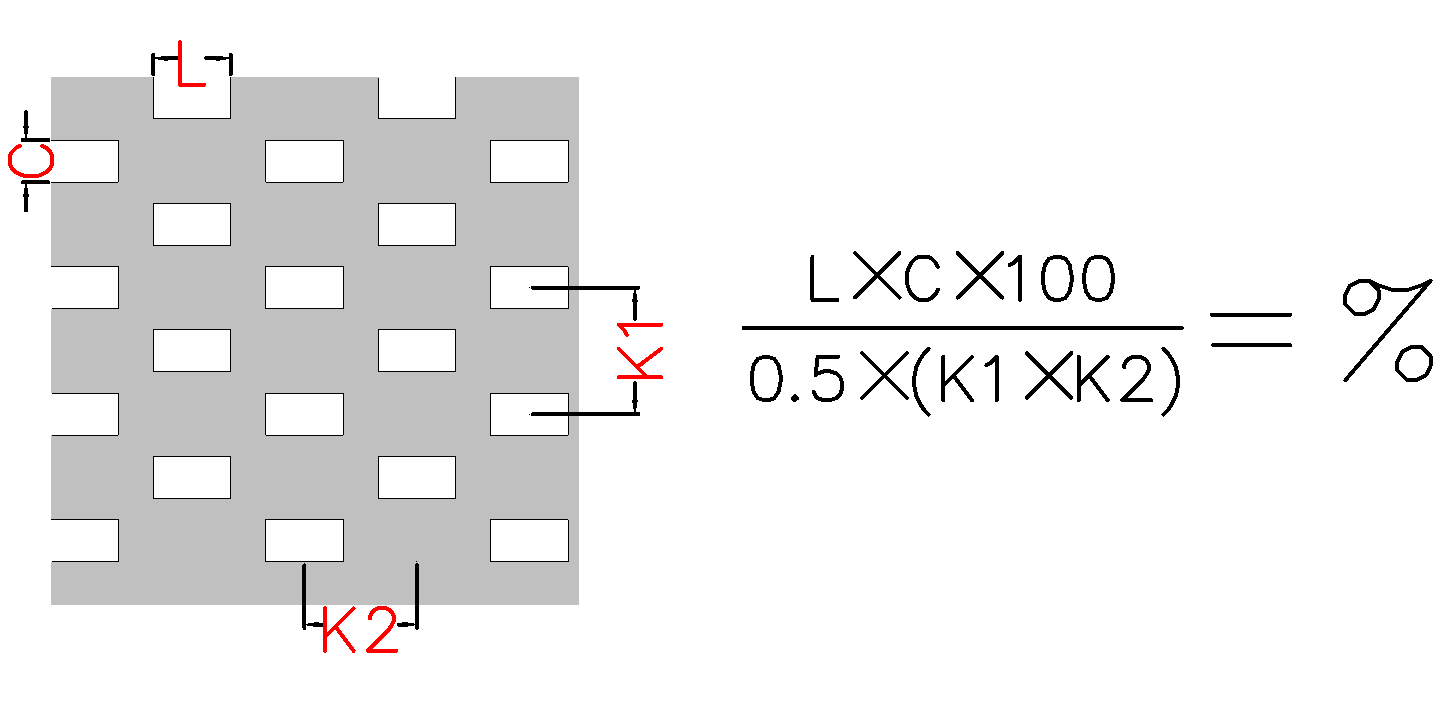

K-Type Rectangular Hole Perforated Plate Open Area Ratio Calculator
K-Type Rectangular Hole
L:
C:
K1:
K2:

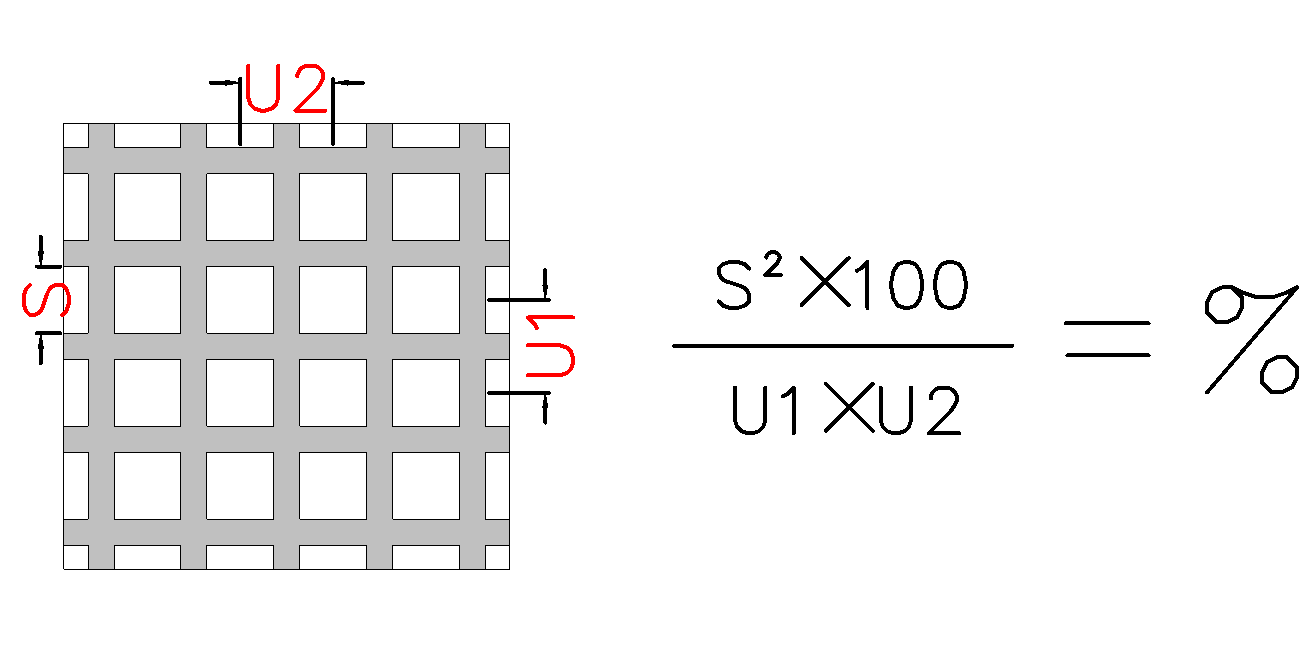

Perforated Plate Open Area Ratio Calculator for Straight Square Holes
Square Hole Straight
S:
U1:
U2:

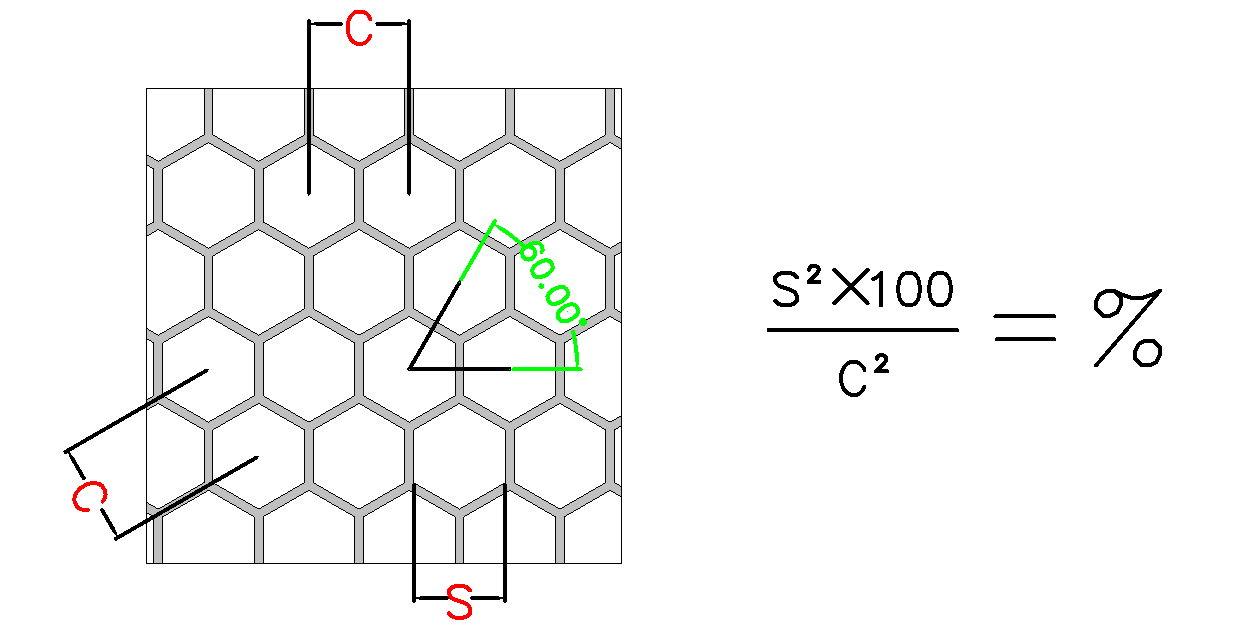

Hexagonal Holes Perforated Plate Open Area Ratio Calculator
Hexagonal Hole
S:
C:

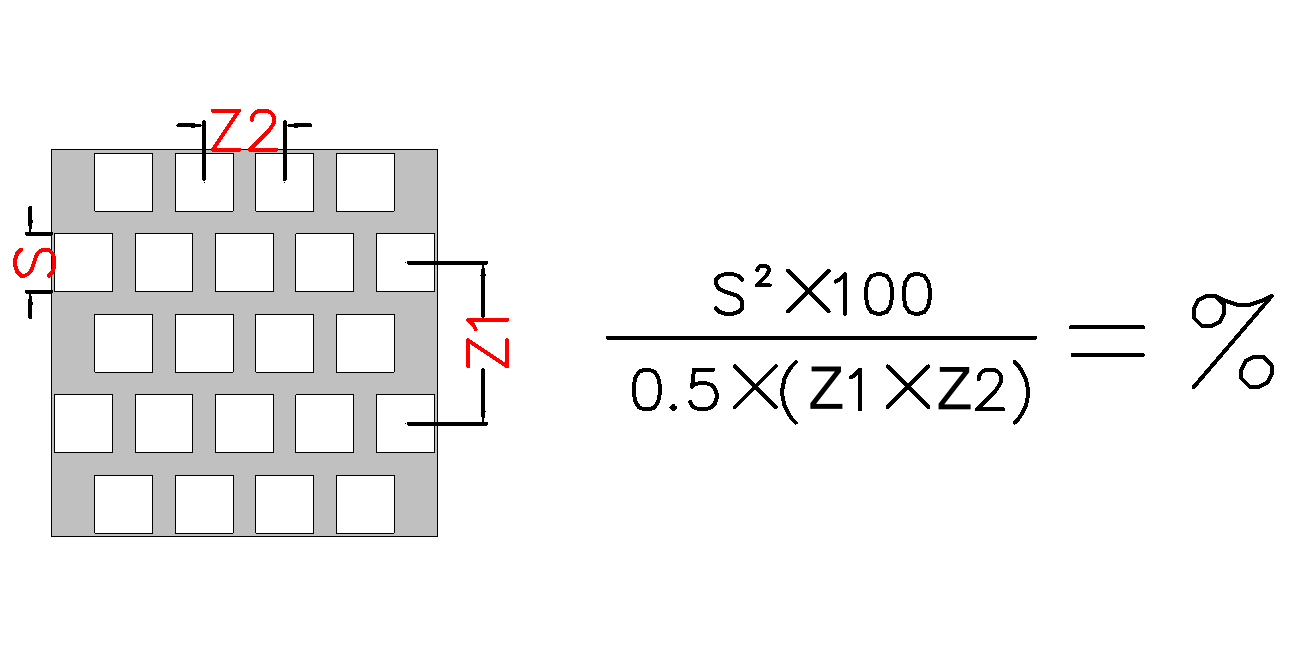

Interlaced Square Hole Perforated Plate Open Area Calculator
Square Hole Staggered
S:
Z1:
Z2:

The above calculation results are for reference only. If there are different calculation methods or if you believe the results from this calculator are incorrect, please rely on your own calculation results. You may also contact the author via email at 342096438@qq.com for discussion or to notify the author of any necessary modifications to the calculator.
