perforated sheet

  • 13条记录
Microporous perforated sheet production video

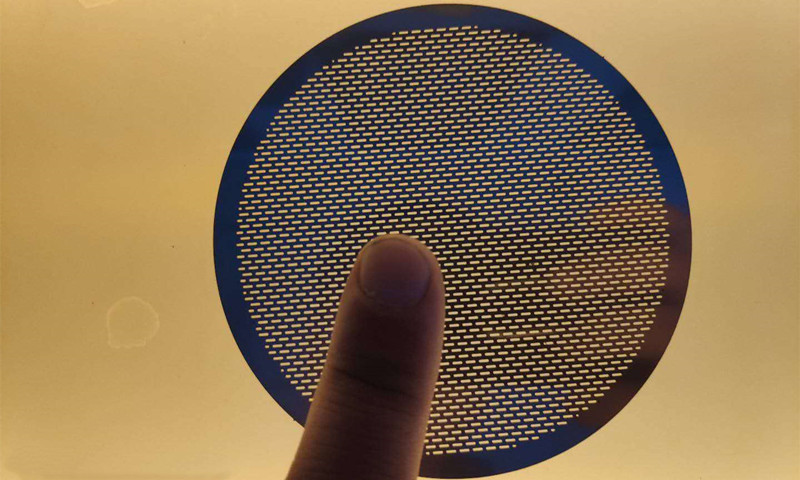

Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product display
Microporous perforated sheet product introduction
Microhole perforated sheet is a mesh product made of high-quality metal plate in CNC punching machine according to customized mold continuous blanking production, because the aperture is particularly small, so it is called microhole perforated sheet. The micro-perforated sheet has the characteristics of precision mesh, uniform mesh, flat mesh, corrosion resistance, acid and alkali resistance, etc. It is widely used in the petroleum, chemical, pharmaceutical and other industries of precision filter, filter plate, filter and other filter materials and mechanical plane parts, earphone network, speaker network and other industries.
Microporous perforated sheet specifications
Mesh hole: Microhole perforated sheet mesh hole has round holes, oval holes, rectangular holes, rectangular holes, triangular holes, five-pointed star holes, hexagonal holes, eight-figure holes, cross holes, miter holes, I-holes, diamond holes and other holes, special holes can be processed to customize, support to map to sample customized production.
Mesh aperture: microhole perforated sheet aperture from 0.2mm to 3mm can be customized production, but to follow the principle of the most small hole, that is, the aperture size should not be less than the thickness of the plate, such as the diameter of the hole 1mm microhole perforated sheet can use the thickness of the plate should not exceed 1mm.
Mesh hole spacing:The hole distance of the micro-perforated sheet can be customized from 0.2mm to 3mm, in order to meet the needs of different opening rates, the distance from the hole edge to another hole edge shall not be less than the thickness of the plate, for example, the distance from the hole edge to the adjacent hole edge of the micro-perforated sheet with a thickness of 1mm shall not be less than 1mm.
Sheet thickness:The thickness of the perforated sheet can be customized from 0.1mm to 3mm.
Plate material:There are many materials to choose from for microporous perforated sheet. Generally, metal plates such as iron plates, aluminum plates, and stainless steel plates can be used to produce microporous perforated sheet.
Iron plate perforated sheet material: cold rolled sheet, hot rolled sheet, galvanized sheet, etc.
Aluminum plate microhole perforation plate quality: 1 series aluminum plate, such as 1050, 1060, 1070, 1100, etc. 3 series aluminum plate, such as 3003, 3004, 3104, etc. 5 series aluminum plate, such as 5005, 5052, 5083, etc.
Materials of stainless steel microporous perforated sheet: 201 material, 304 material, 316 material, 316L material, 409 material, 430 material, etc.
Sheet size:The size of microporous perforated sheet can be customized and produced according to user needs. Conventional plate sizes include 1000mm * 2000mm, 1250mm * 2500mm, 1500mm * 3000mm, and other special size mesh plates can be customized and produced by our factory according to needs.
Deep processing:Microporous perforated sheet can be subjected to different deep processing treatments according to requirements, such as bending, cutting, laser cutting, rolling, etc.
Surface treatment:Microporous perforated sheet can undergo different forms of surface treatment, such as painting, spraying, polishing, anodizing, etc., according to different materials.
Introduction to prices of microporous perforated sheet
The price of microperforated sheet is quoted according to the specifications and models. The price of microperforated sheet per square meter is different for different materials, different thickness, different perforated shapes, different sizes and different order quantities. Users who want to know the price of microperforated sheet can send us an email to tell us the specifications and models you need and the order quantity. We quote for you.
