perforated sheet

1060 aluminum plate perforated sheet

Source:www.cn-psp.cnAuthor:河北森驰公司 Last updated:2024-04-15 11:13 Browse:
Email:342096438@qq.com
We focus on the processing and customization of metal perforated plate, if you need to process customized or wholesale any metal perforated plate products, you can send us an email for consultation.

Product overview

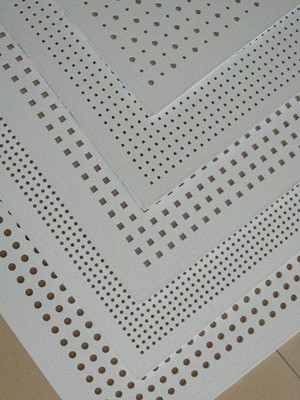

1060 aluminum plate perforated sheet product display

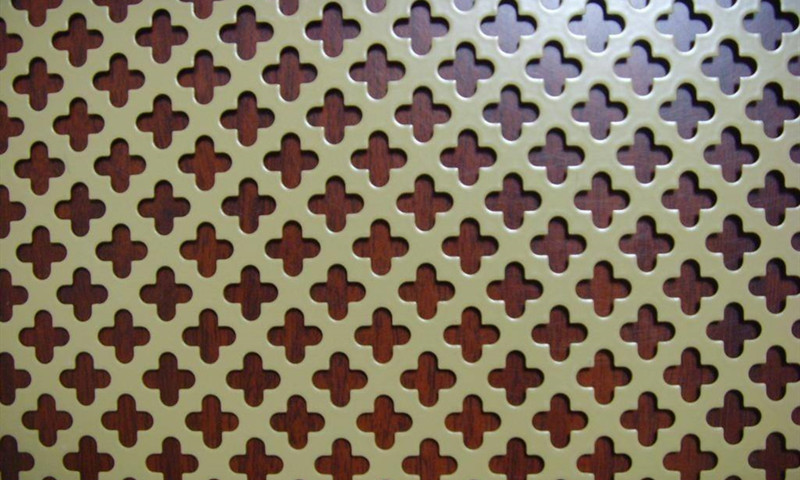

1060 aluminum plate perforated sheet product display

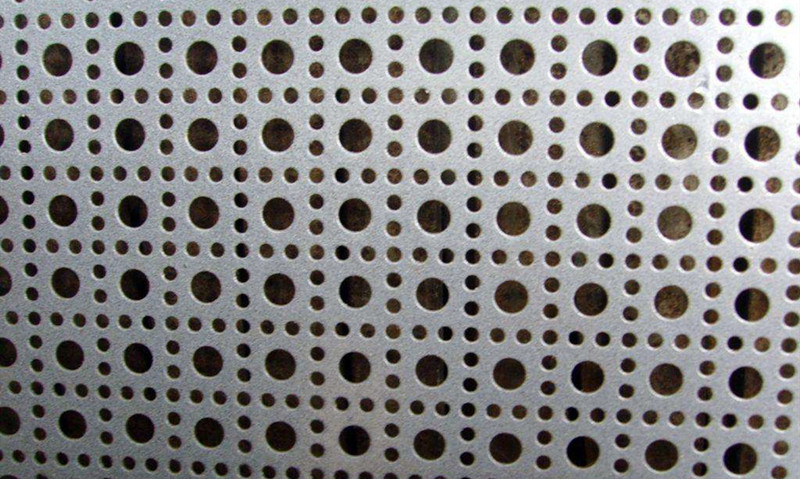

1060 aluminum plate perforated sheet product display

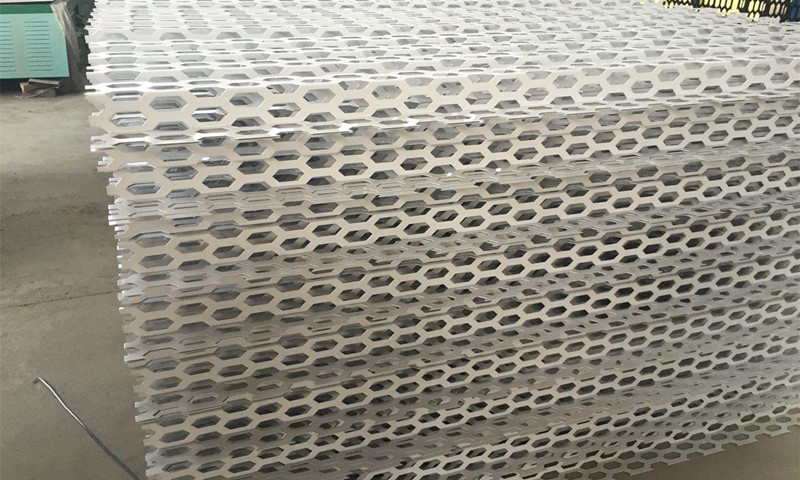

1060 aluminum plate perforated sheet product display
1060 aluminum plate perforated sheet product display
1060 aluminum plate perforated sheet product display
1060 aluminum plate perforated sheet product display
1060 aluminum plate perforated sheet product introduction
1060 aluminum plate perforated sheet is a mesh product made of 1060 aluminum plate processed on a CNC punching machine.
Sheet size
Plate width: 50mm-2000mm can be customized production.
Sheet length: Sheet 1060 aluminum plate perforated sheet length between 50mm-6000mm can be customized production, coil plate 1060 aluminum plate perforated sheet length between 6-300 meters can be customized production.
Sheet thickness
1060 aluminum plate perforation plate thickness from 0.3mm-20mm can be customized production.
Plate material
The plate material of the perforated sheet is 1060 aluminum plate.
Iron:(Fe)0.35%
Manganese:(Mn)0.03%
Magnesium:(Mg)0.03%
Silicon element:(Si)0.25%
Zinc:(Zn)0.05%
Titanium:(Ti)0.03%
Copper element:(Cu)0.05%
Aluminum element:(Al)99.6%以上。
Pass selection
1060 aluminum plate perforation plate has round holes, oval holes, rectangular holes, square holes, rectangular holes, triangular holes, five-pointed star holes, hexagonal holes, eight-figure holes, cross holes, mitre holes, I-holes, diamond holes, fish scale holes, nail holes, bridge holes, louver holes, round drum holes, crocodile mouth holes and other holes, special holes support to map to sample processing custom.
Aperture size
1060 aluminum plate perforation plate aperture size from 1mm-300mm can be customized production, part of the aperture has a ready-made mold.
Pitch of holes
1060 aluminum plate perforated sheet hole spacing in the plate thickness of more than 1.5 times can be customized production.

1060 aluminum plate perforation plate deep processing
1060 aluminum plate perforation plate can be bent, roll, cutting, laser cutting, electrostatic powder spraying, anodic oxidation and other forms of deep processing.
