Aluminum plate perforated sheet introduction

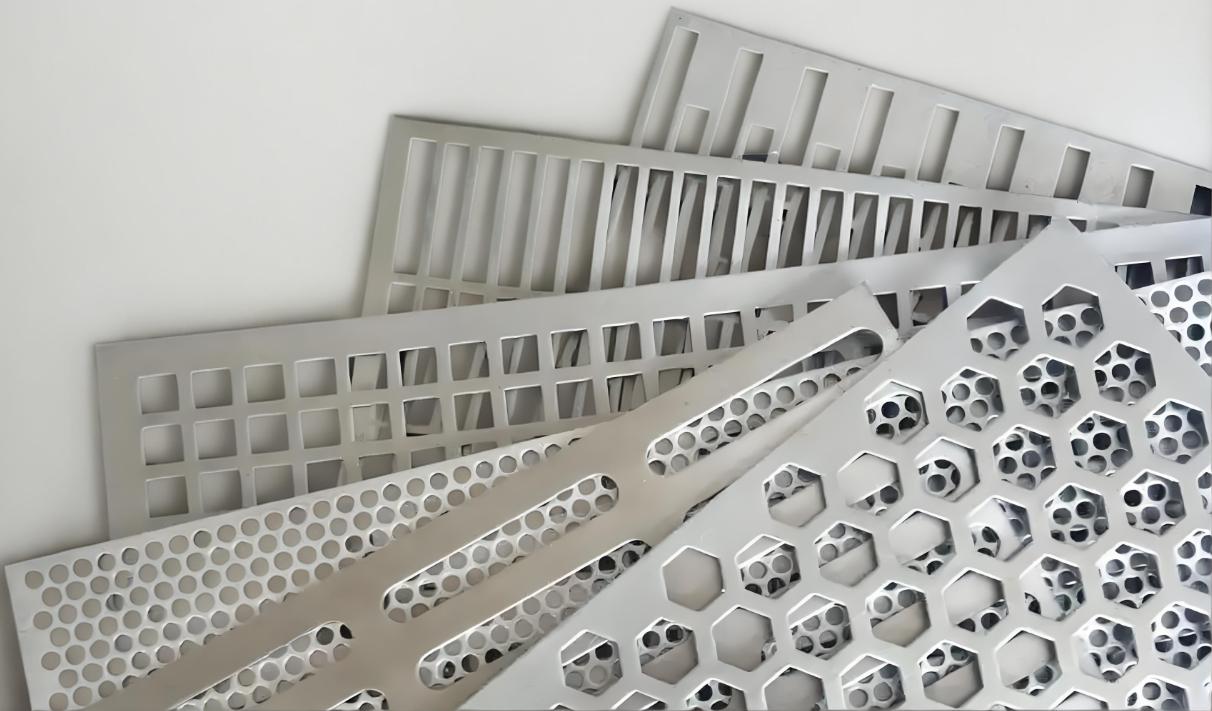

Aluminum plate perforated sheet is one of the products of the perforated sheet series. The material of the plate is various grades of aluminum plate. Aluminum plate perforation plate hole, oval hole, long round hole, square hole, square hole, triangle hole, five-pointed star hole, hexagonal hole, eight-figure hole, cross hole, square hole, zigzag hole, zigzag hole, diamond hole, fish scale hole, nail hole, bridge hole, louver hole, round drum hole, crocodile mouth hole and other holes.
Aluminum plate perforated sheet aperture size and hole spacing can be customized according to demand, the arrangement can be customized according to demand, because of the characteristics of aluminum plate perforated sheet, resulting in aluminum plate perforated sheet has a series of opening rate, greatly meet a variety of different needs.
Aluminum plate perforation plate quality for various grades of aluminum plate, the conventional aluminum plate perforation plate quality has 1 series, 3 series, 5 series, etc., of which 1 series of conventional grades are 1050, 1060, 1070, 1100, etc., in this 1 series aluminum plate material, the application of more grades for 1060 aluminum plate perforation plate;
The conventional grades of 3-series aluminum plate are 3003, 3004, 3104, etc. In the 3-series aluminum plate material, the most used grade is 3003 aluminum plate perforation plate;
The 5 series aluminum plate conventional grades are 5005, 5052, 5083, etc. In the 5 series aluminum plate material, the most used grade is 5052 aluminum plate perforation plate.

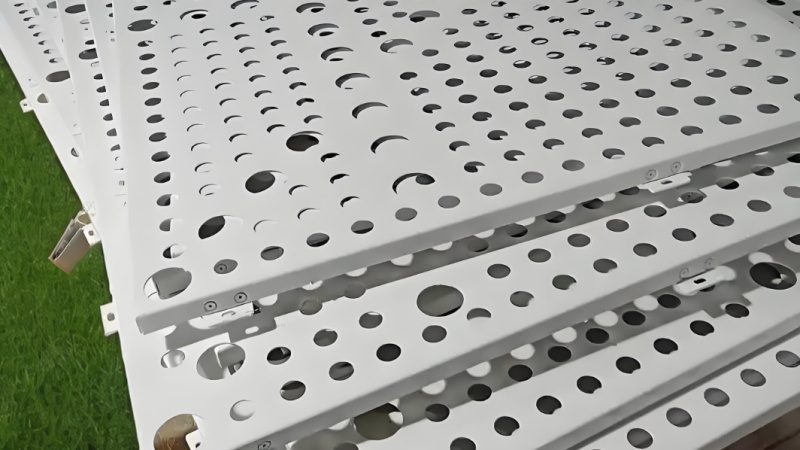

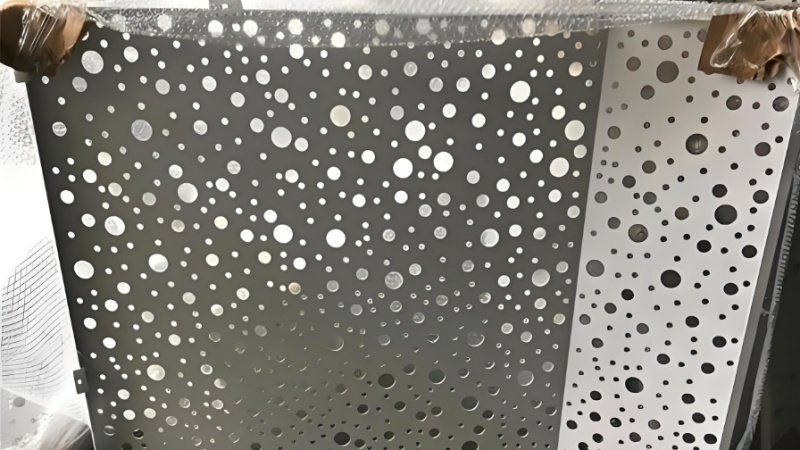

The aluminum plate perforated sheet of the above material is the conventional aluminum plate perforated sheet quality, we can also customize other different grades of aluminum plate perforated sheet products according to demand. Aluminum plate perforated sheet product display
Aluminum plate perforation plate specifications
Aluminum plate perforated sheet specifications are very much, from the plate material, plate size, plate thickness, mesh hole, mesh size, mesh spacing these several large specifications inside and subdivided a lot of subdivided specifications, the following aluminum plate perforated sheet specifications to do a detailed introduction for everyone to understand. Aluminum plate perforated sheet material:Aluminum plate perforated sheet is the use of high-quality aluminum plate as raw materials in the precision CNC punching machine above according to the specific pass continuous punching production of a network product, the conventional plate material is 1 series aluminum plate, 3 series aluminum plate, 5 series aluminum plate and so on.
The conventional specifications of 1 series aluminum plate perforation plate are 1050, 1060, 1070, 1100 and so on.
The conventional specifications of 3 series aluminum plate perforation plate are 3003, 3004, 3104 and so on.
The conventional specifications of 5 series aluminum plate perforation plate are 5005, 5052, 5083 and so on.
The above specifications of aluminum plate perforated sheet for us to produce more, and other various specifications of aluminum plate can basically be used to produce aluminum plate perforated sheet. Aluminum plate perforated sheet size:The size of aluminum plate perforation plate can be customized according to demand, and the width of aluminum plate perforation plate can be customized from 50mm-2000mm;
The length of aluminum plate perforation plate can be customized from 50mm-6000mm, and the length of aluminum plate perforation plate punching net can be customized from 6 meters to 300 meters. Aluminum plate perforated sheet thickness:Aluminum plate perforated sheet thickness from 0.2mm to 20mm can be customized production.
Aluminum plate perforated sheet mesh type: Aluminum plate perforation plate conventional holes are round holes, oval holes, rectangular holes, square holes, rectangular holes, triangular holes, five-pointed star holes, hexagonal holes, eight-figure holes, cross holes, square holes, zigzag holes, zigzag holes, diamond holes, fish scale holes, nail holes, bridge holes, louver holes, round drum holes, crocodile mouth holes and other holes, can be customized according to the needs of other special-shaped holes, Support to draw, sample processing custom. Aluminum plate perforated sheet mesh size:Aluminum plate perforated sheet mesh size from 1mm-300mm can be customized production, but to follow the principle of the smallest hole, the smallest hole principle of aluminum plate perforated sheet is that the aperture size must not be less than the thickness of the plate. Aluminum plate perforated sheet mesh spacing:The mesh spacing of the perforated aluminum plate can be customized according to demand, and the distance from the hole edge to the hole edge can be produced at more than 1.5 times the thickness of the plate. Aluminum plate perforated sheet price introduction
The price of aluminum plate perforation plate is calculated comprehensively according to the specifications and models of aluminum plate perforation plate, and the prices of aluminum plate perforation plate of different specifications and models are not the same. Aluminum plate perforation plate quality affects the price of aluminum plate perforation plate:There are many kinds of materials of aluminum plate perforation plate, different materials of aluminum plate perforation plate use different raw materials, raw material materials are different, so the price of raw materials is different, raw material prices are different, the rest of the parameters are the same aluminum plate perforation plate price is different; Aluminum plate perforation plate size affects the price of aluminum plate perforation plate:The size of aluminum plate perforation plate can be customized according to demand, but the raw material width of aluminum plate perforation plate is fixed, the conventional width is 1 meter wide, 1.2 meters wide, 1.5 meters wide, if we need to customize 1.3 meters *3 meters aluminum plate perforation plate, we need to use the width of 1.5 meters aluminum plate as a raw material production, There will be a waste of 0.2 meters of raw materials purchased, and the wasted raw materials should be calculated into the cost, so the size of the aluminum plate perforated sheet affects the price of aluminum plate perforated sheet; Aluminum plate perforation plate thickness affects the price of aluminum plate perforation plate:Aluminum plate perforated sheet thickness is different, aluminum plate perforated sheet price is different, the thicker the thickness, the more expensive the price of aluminum plate perforated sheet; Aluminum plate perforated sheet mesh size affects the price of aluminum plate perforated sheet:The larger the mesh of aluminum plate perforated sheet, the smaller the production difficulty, the faster the production speed, the lower the processing costs charged, the smaller the mesh of aluminum plate perforated sheet, the greater the production difficulty, the slower the production speed, the higher the processing costs charged, so the size of aluminum plate perforated sheet mesh affects the price of aluminum plate perforated sheet; Aluminum plate perforated sheet mesh spacing affects the price of aluminum plate perforated sheet:The larger the mesh spacing of aluminum plate perforation plate, the faster the production speed, the higher the processing cost charged, the smaller the mesh spacing of aluminum plate perforation plate, the slower the production speed, the lower the processing cost charged.
If you want to know the price of aluminum plate piercing plate, you can send us an email to provide us with the detailed specifications of aluminum plate piercing plate, we will offer you an accurate quotation. The characteristics of aluminum plate perforation plate are introduced
Aluminum plate perforated sheet has the characteristics of light weight, tensile resistance, flat mesh surface, uniform mesh, easy processing, recyclable and so on.
Aluminum plate perforated sheet light weight: aluminum plate perforated sheet raw materials are made of high-quality aluminum plate production, the density of aluminum plate per cubic meter is about 3 times smaller than other metal materials, so the weight of aluminum plate perforated sheet is much lighter than that of other materials.
Aluminum plate perforated sheet tensile resistance: aluminum plate perforated sheet is produced on the aluminum plate after punching, the whole mesh plate is formed, compared with other metal wire mesh products in terms of tensile performance is much higher.
Aluminum plate perforated sheet mesh flat: aluminum plate perforated sheet after the completion of production to the leveling machine above the leveling process, after leveling the aluminum plate perforated sheet mesh is very flat.
Uniform mesh: aluminum plate perforation plate using CNC punching machine production, PLC control. The size and spacing of each mesh are the same, so the mesh of the aluminum plate perforation plate is very uniform.
Aluminum plate perforation plate is easy to process: aluminum plate perforation plate can be processed into a plane, arc, or spherical shape and other very complex geometric shapes.
Aluminum plate perforated sheet can be recycled: can be recycled, conducive to environmental protection; Aluminum plate can be 100% recycled, different from glass, stone, ceramic, aluminum-plastic plate and other decorative materials, high recycling value.
Aluminum plate perforated sheet has strong corrosion resistance, and the surface finish is not super high after electrolytic polishing.
The perforated aluminum plate adopts the process of first processing and then painting or electrostatic spraying, the coating is uniform, the color is diverse, and the choice space is large.
Aluminum plate perforated sheet can be used for building ceiling, wall board sound absorption material, can be used for building stairs, balconies, environmental protection tables and chairs exquisite decorative hole plate, can be used for mechanical equipment protective cover, gorgeous sound box mesh cover, grain, feed, mine grinding screen, mining screen, I screen, kitchen equipment with stainless steel fruit basket, food cover, fruit plate and other kitchenware, As well as shopping malls with shelf nets, decorative exhibition tables and so on.
