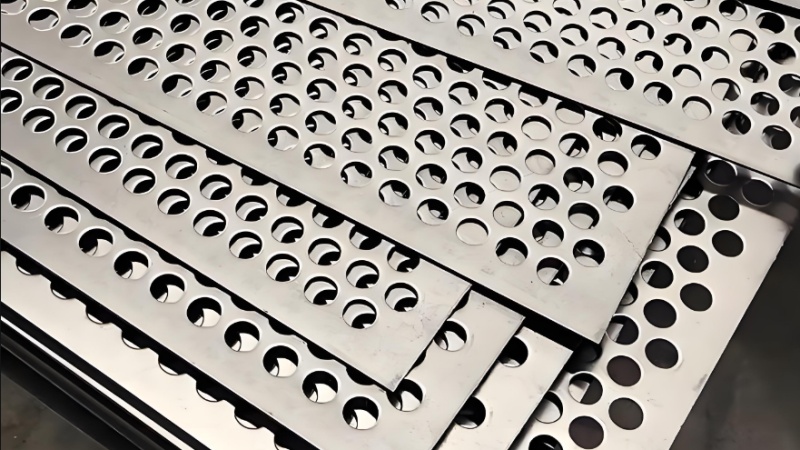

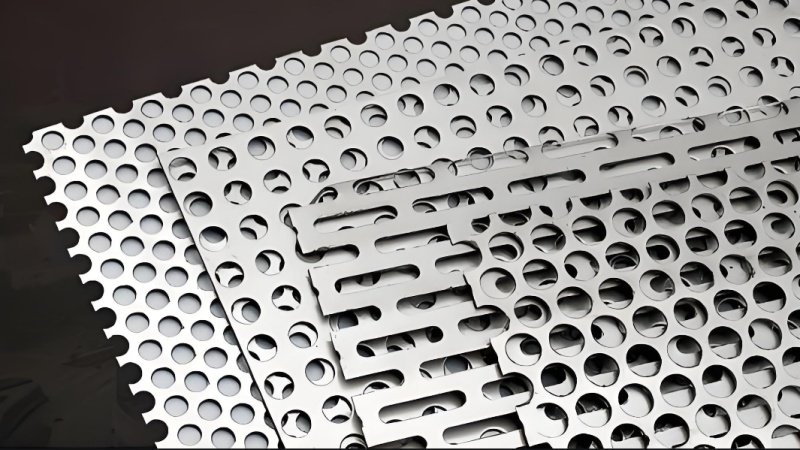

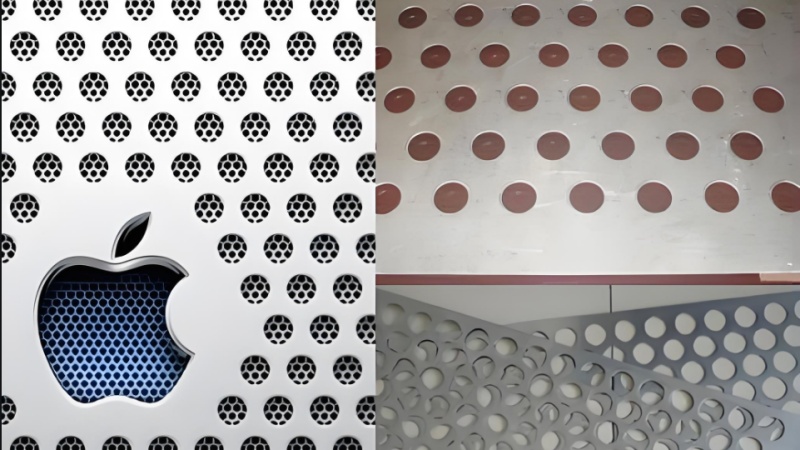

Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product display
Stainless steel perforated sheet product introduction
Stainless steel perforated sheet is a mesh product made of high-quality stainless steel plate as raw material and manufactured in accordance with customized die continuous blanking on the CNC punching press, which has a very wide range of applications. It is widely used in various municipal engineering, factory buildings, building walls, generator rooms, factory buildings, highways, railways, subways, ceiling ceiling and other fields of noise reduction network, with a certain noise reduction effect, and beautiful, decorative good; Can be used in a variety of mechanical equipment, audio, factory plant protective cover and isolation net; Can be used in a variety of mill, grain, feed, mining field grinding screen, I-screen, etc.; It can be used in kitchen equipment with stainless steel fruit basket, food cover, fruit plate and other kitchenware, as well as shopping malls with shelf nets, decorative exhibition tables, ventilation and ventilation nets in grain depots, football turf seepage water filter nets and so on.
Stainless steel perforated sheet compared with other materials punching mesh products have higher corrosion resistance, acid and alkali resistance, can work underwater for a long time, not easy to corrosion, non-toxic and tasteless, will not occur spontaneous combustion phenomenon.
Compared with other materials, stainless steel perforated sheet has higher wear resistance characteristics, long service life, can reduce the frequency of replacement, invisibly reduce the replacement cost, and wear resistance is about 5 times that of the general screen plate.
Flat mesh, uniform mesh, beautiful, easy to install and so on are the advantages of stainless steel perforated sheet, the application range is very wide.
Stainless steel perforated sheet specifications
There are many specifications of stainless steel perforated sheets, which can be subdivided into several specifications, such as plate material, plate size, plate thickness, mesh hole, mesh spacing, mesh size, etc., each of which has many parameters.
Plate material: There are many materials of stainless steel perforated sheet, the conventional materials are 201, 304, 316, 316L, 409, 430, etc., can use other grades of stainless steel plate as raw materials for custom processing.
Sheet size: Conventional stainless steel perforated sheet size 1000mm*2000mm, 1250mm*2500mm, 1500mm*3000mm, 1 m*20 m, 1.2 m*20 m, etc., users can customize other sizes of stainless steel perforated sheet according to their own needs, Plate width > 50mm < 1500mm, length > 50mm < 4000mm between the plate can be customized production.
Plate thickness: The plate thickness of stainless steel perforated sheet can be customized from 0.1mm-20mm.
Mesh pass: Stainless steel perforated sheet mesh hole selection is very rich, can produce holes are round holes, oval holes, round holes, square holes, rectangular holes, triangular holes, five-pointed star holes, hexagonal holes, eight-figure holes, cross holes, square holes, zigzag holes, zigzag holes, diamond holes, fish scale holes, nail holes, bridge holes, louver holes, round drum holes, crocodile mouth holes and other holes. Can be customized according to the needs of other special-shaped pass, support to map to sample custom.
Mesh spacing: stainless steel perforated sheet mesh spacing can be customized according to different needs, in order to meet different opening rates, under normal circumstances, mesh edge to edge spacing greater than 1.5 times the thickness of the plate can be customized production.
Mesh size: stainless steel perforated sheet mesh size can be customized according to demand, in order to meet the different opening rate, under normal circumstances, as long as the mesh diameter is greater than the thickness of the plate, can be customized production.
Stainless steel perforated sheet price introduction
The price of stainless steel perforated sheet is calculated according to the specifications and models of stainless steel perforated sheet. The price per square meter of stainless steel perforated sheet produced by different plate sizes, different plate materials, different plate thickths, different mesh holes and different mesh spacing are not the same. Users who want to know the price of stainless steel perforated sheet can send us an email for consultation and negotiation.
