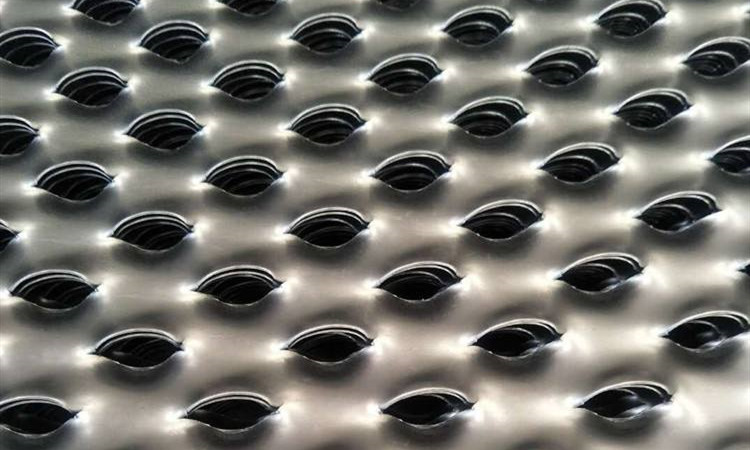

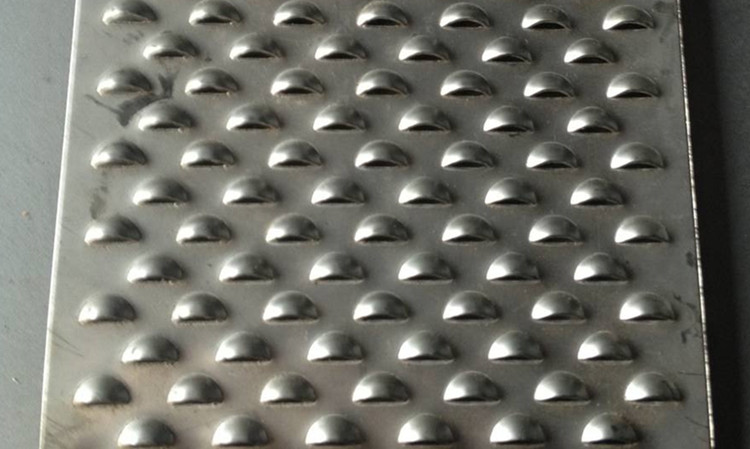

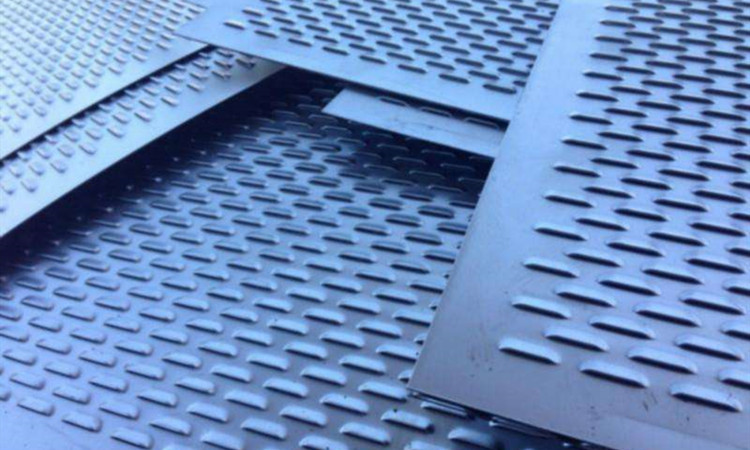

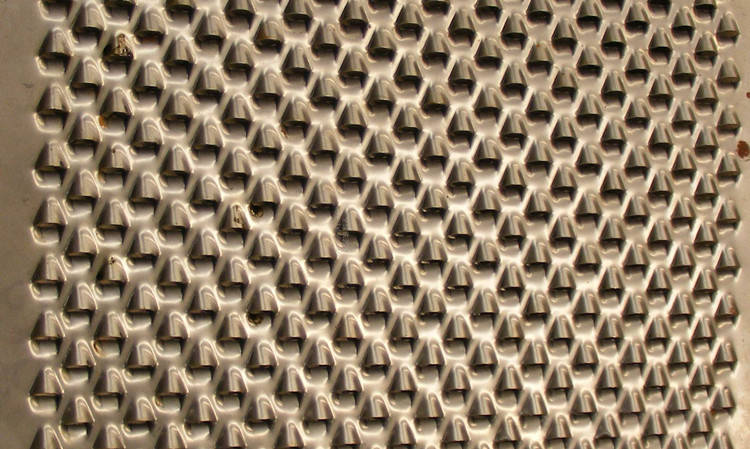

Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product display
Fish scale hole perforated sheet product introduction
Fish scale hole perforated sheet is the use of high-quality metal plate in CNC punching machine above according to the custom mold continuous punching production of a mesh product, the product hole resembles the shape of fish scale, so it is called fish scale hole perforating plate.
Fish scale hole perforated sheet is usually used in automotive internal combustion engine filtration, mining, medicine, grain sampling screening, indoor sound insulation, grain depot ventilation and other fields, with beautiful and generous, strong unity, smooth mesh, durable, easy deep processing and other characteristics.
There are many plate materials that can be selected for fish scale hole perforated sheet. Metal plates of different materials such as iron plate, aluminum plate, stainless steel plate can be customized for processing, and the aperture size and hole spacing can be customized for production according to demand.
Specification of fish scale hole perforated sheet
Sheet thickness:There are many thickness of the fish scale hole perforated sheet, and the thickness of the plate can be produced from 0.5mm-1.5mm, and the user can choose the thickness suitable for his own use according to his own needs.
Sheet size:The conventional size of the fish scale hole perforated sheet is 1000mm*2000mm, 1250mm*2500mm, 1500mm*3000mm, etc., and the special size of the mesh board can be customized according to demand. Under normal circumstances, the width > 50mm, less than 1500mm, length > 50mm, less than 4000mm between the size can be customized production.
Plate material:There are many materials that can be selected for fish scale hole perforated sheet, iron plate, aluminum plate, stainless steel plate and other metal plates of different materials can be customized to produce fish scale hole perforated sheet.
Iron plate fish scale hole perforated sheet can be cold-rolled plate, galvanized plate;
Aluminum plate fish scale hole perforated sheet can be used 1 series aluminum plate such as 1050, 1060, 1070, 1100, etc., 3 series aluminum plate such as 3003, 3004, 3104, etc., 5 series aluminum plate such as 5005, 5052, 5083, etc.;
Stainless steel fish scale hole punching mesh can be made of 304 material, 316 material, etc.
Mesh pass:Fish scale hole, aperture size and hole spacing can be customized according to user needs.
Fish scale hole perforated sheet price introduction
The price of fish scale perforated sheet is calculated according to the specifications and models, and the prices of fish scale perforated sheet are different. Users who want to know the price of fish scale perforated sheet can send us an email for consultation and negotiation.
