Square hole perforated sheet production video

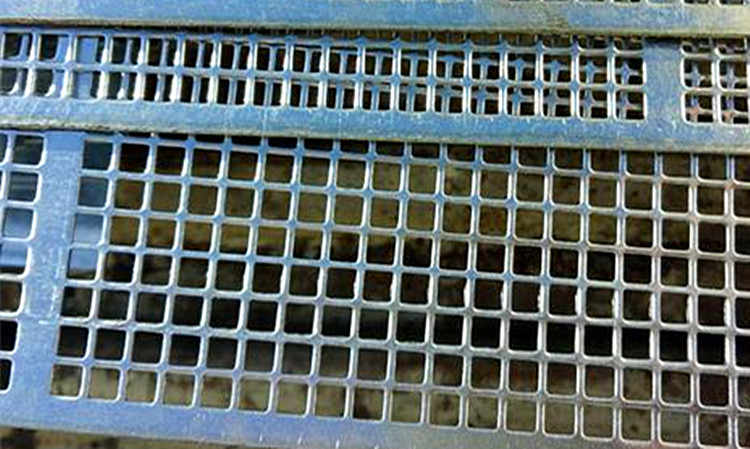

Square hole perforated sheet product display
Square hole perforated sheet product display

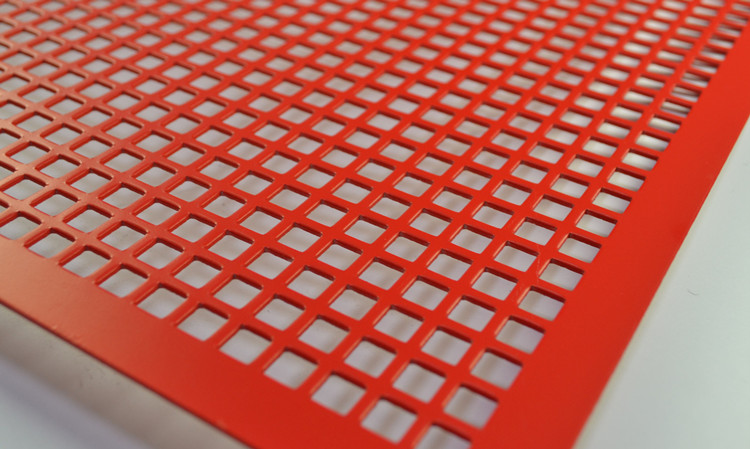

Square hole perforated sheet product display
Square hole perforated sheet product display
Square hole perforated sheet product introduction
Square hole
perforated sheet
usually adopts iron plate, aluminum plate or stainless steel plate and other materials of metal plate in CNC punching machine above according to the custom mold continuous blanking production, the hole is square hole or rectangular hole, often used in a variety of mechanical shield, petrochemical, mining, power plant, construction, ventilation equipment, decoration industry, furniture, agricultural machinery, mining machinery, aerospace and other industries. Because the mesh surface is very flat, uniform mesh, corrosion resistance, decorative strong, loved by all walks of life.
Square hole perforated sheet specifications
Sheet size:
The size of the perforated sheet can be customized according to customer needs, and the width is generally not less than 50mm, not more than 1500mm; The length is not less than 50mm, not more than 4000mm, our factory can be customized according to customer needs.
The conventional size of the square hole perforated sheet is 1000mm*2000mm, 1250mm*2500mm, 1500mm*2500mm, etc. Some specifications have spot sales.
Plate material:
The material of square hole perforated sheet is iron plate, aluminum plate, stainless steel and so on.
Iron plate square hole perforated sheet material is galvanized plate, cold rolled plate, hot rolled plate, manganese steel plate;
Aluminum plate square hole perforated sheet material has 1 series aluminum plate such as 1050, 1060, 1070, 1100, etc., 3 series aluminum plate such as 3003, 3004, 3104, etc., 5 series aluminum plate such as 5005, 5052, 5083, etc., the other grades of aluminum plate can also be customized production;
Stainless steel square hole perforated sheet material 201 material, 304 material, 316 material, 316L material, 409 material, 430 material and so on.
Sheet thickness:
There are many thickness of square hole perforated sheet, from 0.1mm-20mm sheet thickness can be customized production, some specifications have spot sales.
Mesh specifications:
The mesh of a square hole perforated sheet is square or rectangular, and the arrangement mode is straight or staggered.
Mesh size:
The mesh size of the square hole perforated sheet can be customized according to user needs, from 3mm-300mm can be customized production.
Square hole perforated sheet price introduction
The price of square perforated sheet is calculated according to the specifications and models, different specifications, different materials, different thickness of square perforated sheet prices are not the same, want to solve the price of square perforated sheet users can send us an email for consultation and negotiation, we have professional customer service for you to make a quote.
